Product Summary

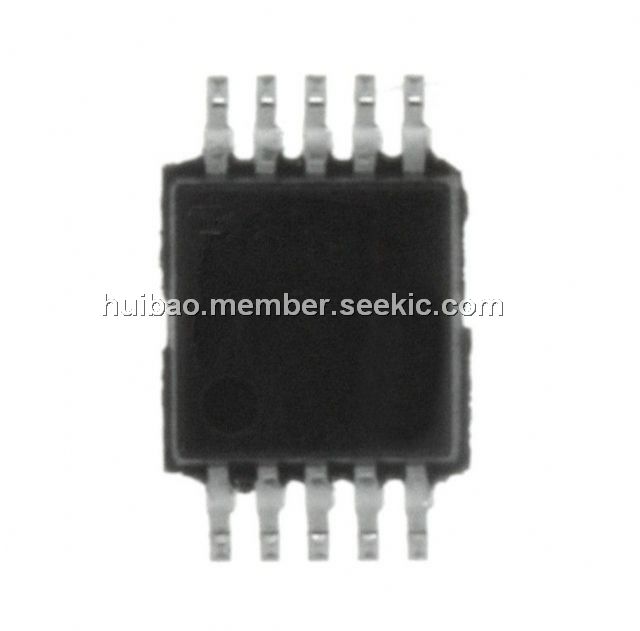

The CS4344-DZZR is a 24-Bit, 192 kHz Stereo D/A Converter and output analog filtering in a 10-pin package. The CS4344-DZZR supports all major audio data interface formats,and the individual devices differ only in the supported interface format. The CS4344-DZZR is based on a fourth order multi-bit delta-sigma modulator with a linear analog low-pass fil-ter. This device also includes auto-speed mode detection using both sample rate and master clock ratio as a meth-od of auto-selecting sampling rates between 2 kHz and 200 kHz.
Parametrics
CS4344-DZZR absolute maximum ratings: (1)DC Power Supply, VA: -0.3 to 6.0 V; (2)Input Current, Any Pin Except Supplies, Iin: ±10mA Digital Input Voltage, VIND: -0.3 to VA +0.4 V; (3)Ambient Operating Temperature (power applied), Top: -55 to 125℃; (4)Storage Temperature, Tstg: -65 to 150℃.
Features
CS4344-DZZR features: (1)Multi-bit Delta-Sigma Modulator; (2)24-Bit Conversion; (3)Automatically Detects Sample Rates up to 192 kHz ; (4)105 dB Dynamic Range; (5)-95 dB THD+N; (6)Low Clock Jitter Sensitivity; (7)Single +3.3 V or +5 V Power Supply; (8)Filtered Line Level Outputs; (9)On-Chip Digital De-emphasis; (10)Popguard Technology; (11)Small 10-Pin TSSOP Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS4344-DZZR |
Cirrus Logic |
DAC (D/A Converters) IC 10-pin 24Bit 192kHz Stereo DAC |
