LPC2124FBD64

Product Summary

The LPC2124FBD64 is a Single-chip 16/32-bit microcontroller. The LPC2124FBD64 is based on a 16/32 bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, together with 128/256 kilobytes (kB) of embedded high speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb. Mode reduces code by more than 30 % with minimal performance penalty.

Parametrics

LPC2124FBD64 absolute maximum ratings: (1)Supply voltage, internal rail, V18: -0.5 to +2.5 V; (2)Supply voltage, external rail, V3: -0.5 to +3.6 V; (3)Analog 3.3 V pad supply voltage, V3A: -0.5 to 4.6 V; (4)Analog input voltage on A/D related pins, AVIN: -0.5 to 5.1 V; (5)DC input voltage, 5 V tolerant I/O pins, Vi: -0.5 to 6.0 V; (6)DC input voltage, other I/O pins, Vi: -0.5 to V3 +0.5 V; (7)DC supply current per supply pin, I: -100 mA; (8)DC ground current per ground pin, I: -100 mA; (9)Storage temperature, Tstg: -65 to 150℃; (10)Power dissipation (based on package heat transfer, not device power consumption), P: 1.5W.

Features

LPC2124FBD64 features: (1)16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (2)16 kB on-chip Static RAM; (3)128/256 kB on-chip Flash Program Memory. 128-bit wide interface/accelerator enables high speed 60 MHz operation; (4)In-System Programming (ISP) and In-Application Programming (IAP) via on-chip boot-loader software. Flash programming takes 1 ms per 512 byte line. Single sector or full chip erase takes 400 ms; (5)EmbeddedICE-RT interface enables breakpoints and watch points. Interrupt service routines can continue to execute whilst the foreground task is debugged with the on-chip RealMonitor software; (6)Embedded Trace Macrocell. enables non-intrusive high speed real-time tracing of instruction execution; (7)Four channel 10-bit A/D converter with conversion time as low as 2.44 ms; (8)Two 32-bit timers (with 4 capture and 4 compare channels), PWM unit (6 outputs), Real Time Clock and Watchdog; (9)Multiple serial interfaces including two UARTs (16C550), Fast I2C (400 kbits/s) and two SPIs; (10)60 MHz maximum CPU clock available from programmable on-chip Phase-Locked Loop with settling time of 100 ms; (11)Vectored Interrupt Controller with configurable priorities and vector addresses. Up to forty-six 5 V tolerant general purpose I/O pins. Up to nine edge or level sensitive external interrupt pins available; (12)On-chip crystal oscillator with an operating range of 1 MHz to 30 MHz; (13)Two low power modes, Idle and Power-down; (14)Processor wake-up from Power-down mode via external interrupt; (15)Individual enable/disable of peripheral functions for power optimization.

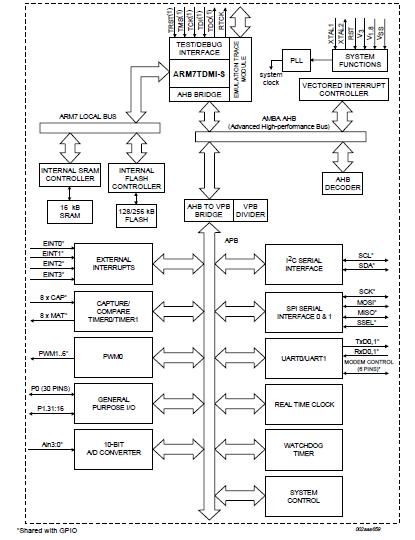

Diagrams
