Product Summary

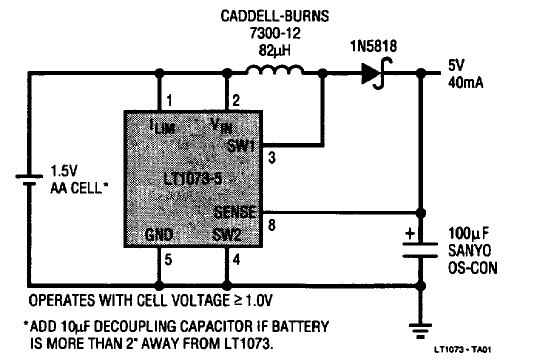

The LT1073CS8-5#TRPBF is a versatile micropower DC-DC converter. The device requires only three external components to deliver a fixed output of 5V or 12V. The very low minimum supply voltage of 1.0V allows the use of the LT1073CS8-5#TRPBF in applications where the primary power source is a single cell. An on-chip auxiliary gain block can function as a low-battery detector or linear post-regulator. Average current drain of the LT1073CS8-5#TRPBF used as shown in the Typical Application circuit below is just 135(xA unloaded, making it ideal for applications where long battery life is important. The applications of the LT1073CS8-5#TRPBF include Pagers, Cameras, Single-Cell to 5V Converters, Battery Backup Supplies, Laptop and Palmtop Computers, CellularTelephones, Portable Instruments, 4mA-20mA Loop Powered Instruments, Hand-Held Inventory Computers, Battery-Powered α, β, γ Particle Detectors.
Parametrics
LT1073CS8-5#TRPBF absolute maximum ratings: (1)Supply Voltage, Step-Up Mode: 15V; (2)Simply Voltage, Step-Down Mode: 36V; (3)SW1 Pin Voltage: 50V; (4)SW2 Pin Voltage: -0.4V to VIN; (5)Feedback Pin Voltage: 5V; (6)Switch Current: 1.5A; (7)Maximum Power Dissipation: 500mW; (8)Operating Temperature Range: 0℃ to 70℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LT1073CS8-5#TRPBF features: (1)No Design Required; (2)Operates at S ply Voltages From 1.0V to 30V; (3)Consumes 0nly 95mA Sply Current; (4)Works in Step-Up or Step-Down Mode; (5)Only Three External Off-the-Shelf Components Required; (6)Low-Battery Detector Comparator On-Chip; (7)User-Adjustable Current Limit; (8)Internal 1A Power Switch; (9)Fixed or Adjustable Output Voltage Versions; (10)Space-Saving 8-Pin MiniDIP or S08 Package.
