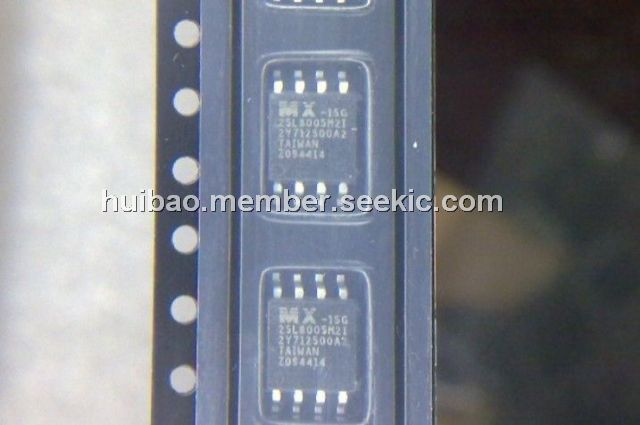

Product Summary

The MX25L8005M2I-15G is a CMOS 8,388,608 bit serial Flash memory, which is configured as 1,048,576 × 8 internally. It features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). The MX25L8005M2I-15G provides sequential read operation on whole chip. The MX25L8005M2I-15G utilizes MXIC s proprietary memory cell, which reliably stores memory contents even after 100,000 program and erase cycles.

Parametrics

MX25L8005M2I-15G absolute maximum ratings: (1)Ambient Operating Temperature: -40℃ to 85℃ for Industrial grade; 0℃ to 70℃ for Commercial grade; (2)Storage Temperature: -55℃ to 125°C; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L8005M2I-15G features: (1)Serial Peripheral Interface (SPI) compatible -- Mode 0 and Mode 3; (2)8,388,608 × 1 bit structure; (3)256 Equal Sectors with 4K byte each: Any Sector can be erased individually; (4)16 Equal Blocks with 64K byte each: Any Block can be erased individually; (5)Single Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations; (6)Latch-up protected to 100mA from -1V to Vcc +1V; (7)Low Vcc write inhibit is from 1.5V to 2.5V.

Diagrams

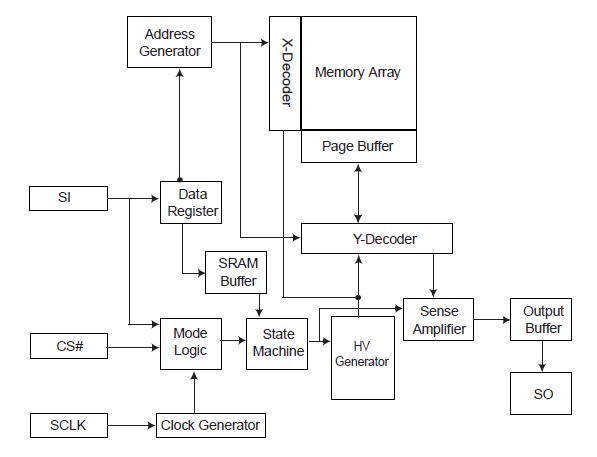

MX25L8005M2I-15G block diagram
