Product Summary

The AT49F1025-70JU is a 5-volt-only in-system Flash Memory. Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with the advanced nonvolatile CMOS technology, the AT49F1025-70JU offers access times to 45ns with power dissipation of just 275 mW over the commercial temperature range. When the device is deselected, the CMOS standby current is less than 100 μA. The AT49F1025-70JU is pin compatable with the AT29C1024.

Parametrics

AT49F1025-70JU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins)with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT49F1025-70JU features: (1)Single Voltage Operation: 5V Read; 5V Reprogramming; (2)Fast Read Access Time - 45 ns; (3)Internal Program Control and Timer; (4)8K word Boot Block With Lockout; (5)Fast Erase Cycle Time - 10 seconds; (6)Word By Word Programming - 10 μs/Word Typical; (7)Hardware Data Protection; (8)DATA Polling For End Of Program Detection; (9)Small 10 × 14 mm VSOP Package; (10)Typical 10,000 Write Cycles.

Diagrams

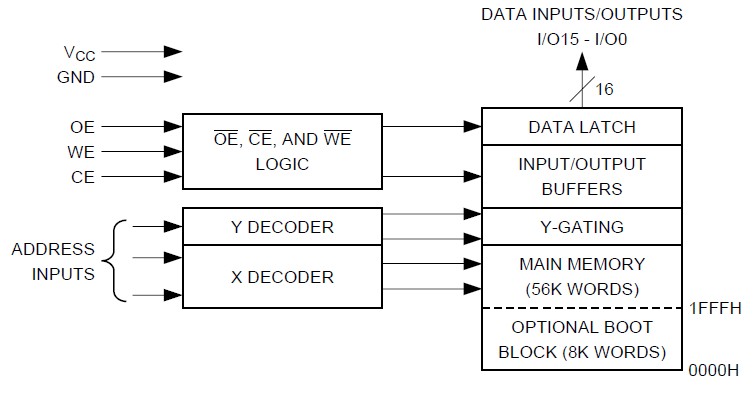

AT49F1025-70JU block diagram

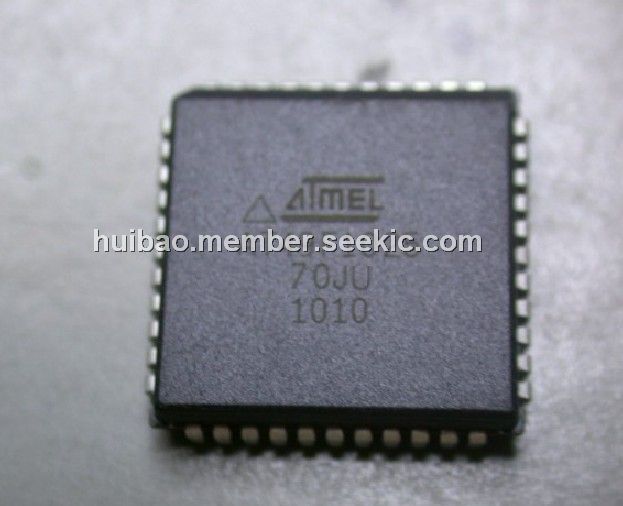

AT490JB
AT490JB
