Product Summary

The MC68HC11F1CPU4 is an 8-Bit Microcontroller. High-speed expanded systems required the development of the MC68HC11F1CPU4 with its extra input/output (I/O) ports, an increase in static RAM (one Kbyte), internal chip-select functions, and a non-multiplexed bus which reduces the need for external interface logic. The timer, serial I/O, and analog-to-digital (A/D) converter enable functions similar to those found in the MC68HC11E9.

Parametrics

MC68HC11F1CPU4 absolute maximum ratings: (1)Supply Voltage:-0.3 to + 7.0 V; (2)Input Voltage:-0.3 to + 7.0 V; (3)Operating Temperature Range:-40 to + 85℃; (4)Storage Temperature Range:-55 to + 150℃; (5)Current Drain per Pin Excluding VDD, VSS, AVDD, VRH, and VRL:25 mA.

Features

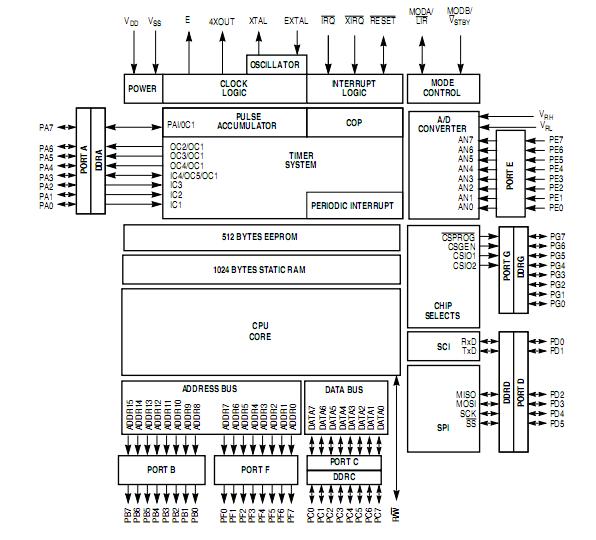

MC68HC11F1CPU4 features: (1)On-Board Chip-Selects with Clock Stretching; (2)Real-Time Interrupt Circuit; (3)8-Bit Pulse Accumulator; (4)Synchronous Serial Peripheral Interface (SPI); (5)Asynchronous Nonreturn to Zero (NRZ) Serial Communication Interface (SCI); (6)Power saving STOP and WAIT Modes; (7)Eight-Channel 8-Bit A/D Converter; (8)Computer Operating Properly (COP) Watchdog System and Clock Monitor; (9)Bus Speeds of up to 5 MHz for the MC68HC11F1; (10)68-Pin PLCC, and 80-pin TQFP package options; (11)MC68HC11 CPU; (12)512 Bytes of On-Chip Electrically Erasable Programmable ROM(EEPROM) with Block Protect; (13)1024 Bytes of On-Chip RAM (All Saved During Standby); (14)Enhanced 16-Bit Timer System: 3 Input Capture (IC) Functions, 4 Output Compare (OC) Functions, 4th IC or 5th OC (Software Selectable).
