Product Summary

The A40MX04-PQ100 is an FPGA. It offers a cost-effective design solution at 5V. The A40MX04-PQ100 is a single-chip solution and provides high performance while shortening the system design and development cycle. The device can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications of the A40MX04-PQ100 include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and coprocessor functions.

Parametrics

A40MX04-PQ100 absolute maximum ratings: (1)DC Supply Voltage:–0.5 to +7.0V; (2)Input Voltage:–0.5 to VCC+0.5V; (3)Output Voltage:–0.5 to VCC+0.5V; (4)Storage Temperature:–65℃ to +150℃.

Features

A40MX04-PQ100 features: (1)Single-Chip ASIC Alternative; (2)3,000 to 54,000 System Gates; (3)Up to 2.5 kbits Configurable Dual-Port SRAM; (4)Fast Wide-Decode Circuitry; (5)Up to 202 User-Programmable I/O Pins; (6)5.6 ns Clock-to-Out; (7)250 MHz Performance; (8)5 ns Dual-Port SRAM Access ; (9)100 MHz FIFOs; (10)7.5 ns 35-Bit Address Decode; (11)Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (12)Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages; (13)QML Certification; (14)Ceramic Devices Available to DSCC SMD.

Diagrams

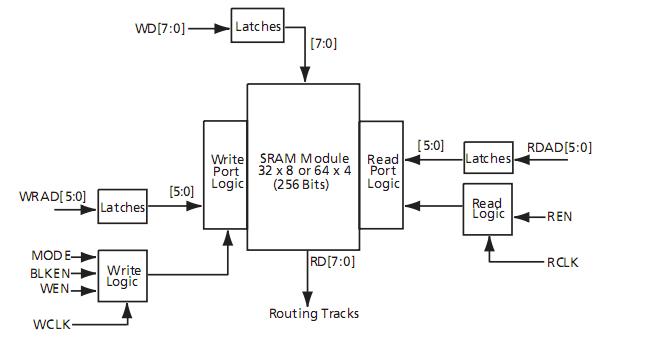

A40MX04-PQ100 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

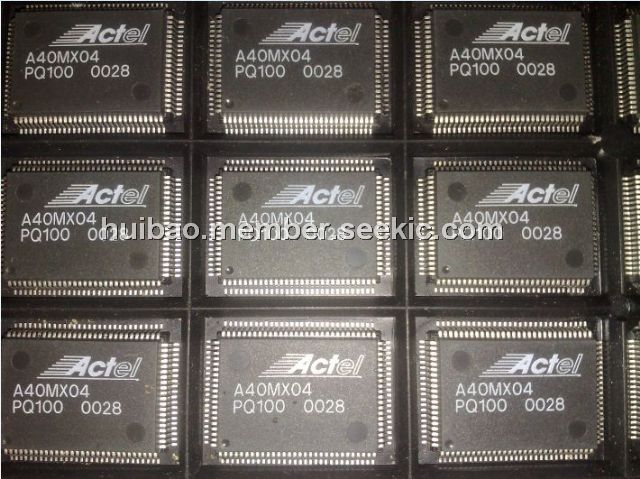

A40MX04-PQ100
A40MX04-PQ100


IC FPGA MX SGL CHIP 6K 100-PQFP
