Product Summary
The HT82K96E is an 8-bit high performance RISC-like microcontroller designed for USB product applications. The HT82K96E is particularly suitable for use in products such as mice, keyboards and joystick. A HALT feature is included to reduce power consumption.
Parametrics
HT82K96E absolute maximum ratings: (1)Supply Voltage: VSS-0.3V to VSS+6.0V; (2)Storage Temperature: -50 to 125℃; (3)Input Voltage: VSS-0.3V to VDD+0.3V; (4)Operating Temperature: 0 to 70℃.
Features
HT82K96E features: (1)Operating voltage: fSYS=6M/12MHz: 4.4V~5.5V; (2)Low voltage reset function; (3)32 bidirectional I/O lines (max.); (4)8-bit programmable timer/event counter with over-flow interrupt; (5)16-bit programmable timer/event counter and over-flow interrupts; (6)Crystal oscillator (6MHz or 12MHz); (7)Watchdog Timer; (8)6 channels 8-bit A/D converter; (9)PS2 and USB modes supported; (10)USB1.1 low speed function; (11)4 endpoints supported (endpoint 0 included); (12)4096×15 program memory ROM; (13)160×8 data memory RAM; (14)HALT function and wake-up feature reduce power consumption; (15)8-level subroutine nesting; (16)Up to 0.33μs instruction cycle with 12MHz system clock at VDD=5V; (17)Bit manipulation instruction; (18)15-bit table read instruction; (19)63 powerful instructions; (20)All instructions in one or two machine cycles; (21)20-pin SOP, 48-pin SSOP package.

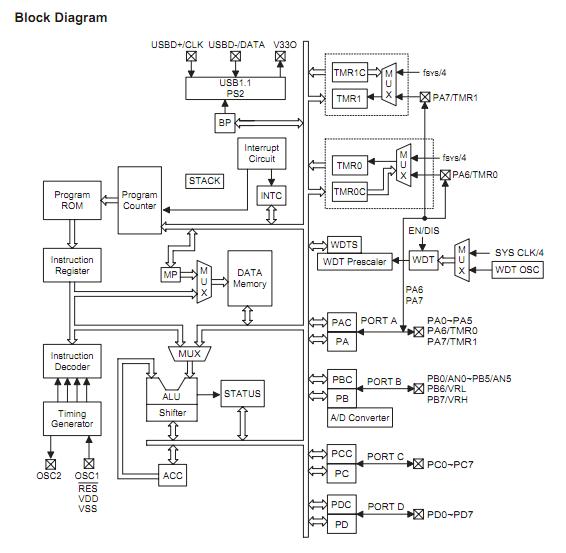

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
HT82K96E |
Other |
Data Sheet |
Negotiable |
|
||||||
