Product Summary

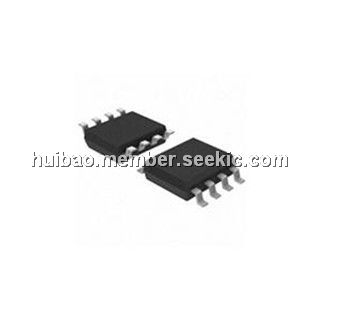

The LT1636CS8 is a Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp. It operates on all single and split supplies with a total voltage of 2.7V to 44V drawing less than 50μA of quiescent current. The LT1636CS8 can be shut down, making the output high impedance and reducing the quiescent current to 4mA. The device has a unique input stage that operates and remains high impedance when above the positive supply. The LT1636CS8 can drive heavy loads; its rail-to-rail output drives 18mA. The device is unity-gain stable into all capacitive loads up to 10,000pF when a 0.22mF and 150W compensation network is used. The applications of the LT1636CS8 include: Battery- or Solar-Powered Systems Portable Instrumentation Sensor Conditioning, Supply Current Sensing, Battery Monitoring, MUX Amplifiers, 4mA to 20mA Transmitters.
Parametrics
LT1636CS8 absolute maximum ratings: (1)Total Supply Voltage (V+ to V –): 44V; (2)Input Differential Voltage: 44V; (3)Input Current: ±25mA; (4)Shutdown Pin Voltage Above V –: 32V; (5)Shutdown Pin Current: ±10mA; (6)Operating Temperature Range: –40℃ to 85℃; (7)Specified Temperature Range: –40℃ to 85℃; (8)Junction Temperature: 150℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1636CS8 features: (1)Rail-to-Rail Input and Output; (2)Micropower: 50μA IQ, 44V Supply; (3)MSOP Package; (4)Over-The-Top: Input Common Mode Range Extends 44V Above VEE, Independent of VCC; (5)Low Input Offset Voltage: 225mV Max; (6)Specified on 3V, 5V and ±15V Supplies; (7)High Output Current: 18mA; (8)Output Shutdown; (9)Output Drives 10,000pF with Output Compensation; (10)Reverse Battery Protection to 27V; (11)High Voltage Gain: 2000V/mV; (12)High CMRR: 110dB; (13)220kHz Gain-Bandwidth Product.

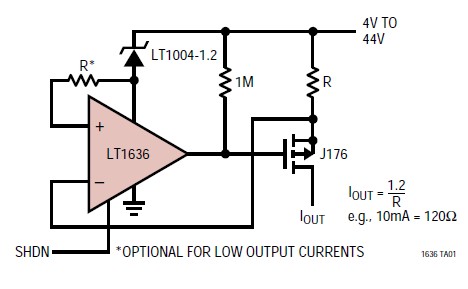

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1636CS8 |
|
IC OPAMP R-R IN/OUT 220KHZ 8SOIC |
Data Sheet |
|
|
||||||||||
|
LT1636CS8#PBF |
|
IC OPAMP R-R IN/OUT 220KHZ 8SOIC |
Data Sheet |
|
|
||||||||||
|
LT1636CS8#TR |
|
IC OPAMP R-R I/O 220KHZ 8SOIC |
Data Sheet |
|
|
||||||||||
|
LT1636CS8#TRPBF |
|
IC OPAMP R-R IN/OUT 220KHZ 8SOIC |
Data Sheet |
|
|
||||||||||
