Product Summary

The ICL8069DCZR is a 1.2V temperature-compensated voltage reference. It uses the band-gap principle to achieve excellent stability and low noise at reverse currents down to 50μA. Applications of the ICL8069DCZR include analog-to-digital converters, digital-to-analog converters, threshold detectors, and voltage regulators. Its low power consumption makes it especially suitable for battery operated equipment.

Parametrics

ICL8069DCZR absolute maximum ratings: (1)Forward Current:10mA; (2)Reverse Current:10mA; (3)Maximum Junction Temperature:150℃; (4)Maximum Storage Temperature Range:-65℃ to 150℃; (5)Maximum Lead Temperature (Soldering 10s):300℃; (6)Operating temperature range:0℃ to 70℃.

Features

ICL8069DCZR features: (1)Low Bias Current (Min):50μA ; (2)Low Dynamic Impedance; (3)Low Reverse Voltage; (4)Low Cost.

Diagrams

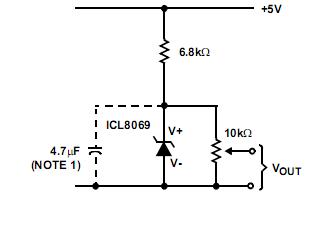

ICL8069DCZR block diagram
