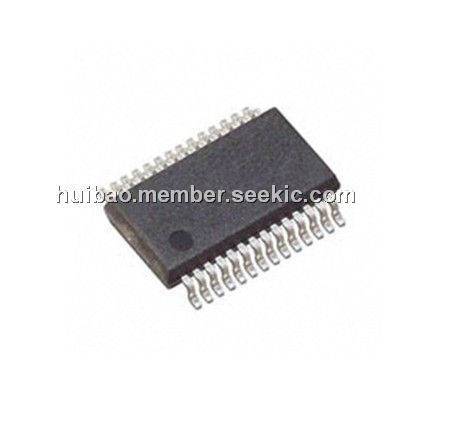

LTC1338IG#TRPBF

5-driver/3-receiver RS232 transceiver, SSOP 28 Pin, – 25V to 25V, LTC1338IG#TRPBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~2.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.90~2.30

PartNumber:: LTC1338IG#TRPBF

Brand:: Linear Technology - Linear | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-29

From Other Seller

Part Number:LTC1338IG#TRPBF
US $1.90 - 2.30
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC1338IG#TRPBF is a 5-driver/3-receiver RS232 transceiver with very low supply current. In the no load condition, the supply current is only 500μA. The charge pump only requires four 0.1μF capacitors. The applicaitons of the LTC1338IG#TRPBF include Battery-Powered Modems, Battery-Powered DCE, Notebook Computers and Palmtop Computers.

Parametrics

LTC1338IG#TRPBF absolute maximum ratings: (1)Supply Voltage (VCC): 6V; (2)Input Voltage Driver: –0.3V to VCC + 0.3V; Receiver: – 25V to 25V; Driver/Receiver Enable Pin: –0.3V to VCC + 0.3V; (3)Output Voltage Driver: – 25V to 25V; Receiver: – 0.3V to VCC + 0.3V; (4)Short Circuit Duration V+: 30 sec; V–: 30 sec; Driver Output: Indefinite; Receiver Output: Indefinite; (5)Operating Temperature Range: 0 to 70℃; (6)Storage Temperature Range: – 65 to 150℃; (7)Lead Temperature (Soldering, 10 sec):300℃.

Features

LTC1338IG#TRPBF features: (1)Low Supply Current: 500μA; (2)0.2μA Supply Current in SHUTDOWN; (3)50μA Supply Current in RECEIVER ALIVE Mode; (4)ESD Protection Over ±10kV; (5)Operates from a Single 5V Supply; (6)Uses Small Capacitors: 0.1μF; (7)Operates to 120k Baud; (8)Three-State Outputs Are High Impedance When Off; (9)Output Overvoltage Does Not Force Current Back into Supplies; (10)RS232 I/O Lines Can Be Forced to ±25V Without Damage; (11)Flowthrough Architecture.
