Product Summary
The ISO122P is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal of the ISO122P is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, resulting in excellent reliability and good high frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The applications of the ISO122P include ground loop elimination, motor and scr control, power monitoring, pc-based data acquisition and test equipment.
Parametrics
ISO122P absolute maximum ratings: (1)Supply Voltage: ±18V; (2)VIN: ±100V; (3)Continuous Isolation Voltage: 1500Vrms; (4)Junction Temperature: +150℃; (5)Storage Temperature: +85℃; (6)Lead Temperature (soldering, 10s): +300℃; (7)Output Short to Common: Continuous.
Features
ISO122P features: (1)100% tested for high-voltage breakdown; (2)RATED 1500Vrms; (3)high IMR: 140dB at 60Hz; (4)bipolar operation: VO = ±10V; (5)16-PIN plastic DIP and 28-LEAD SOIC; (6)ease of use: Fixed Unity Gain Configuration; (7)0.020% max nonlinearity; (8)±4.5V to ±18V supply range.

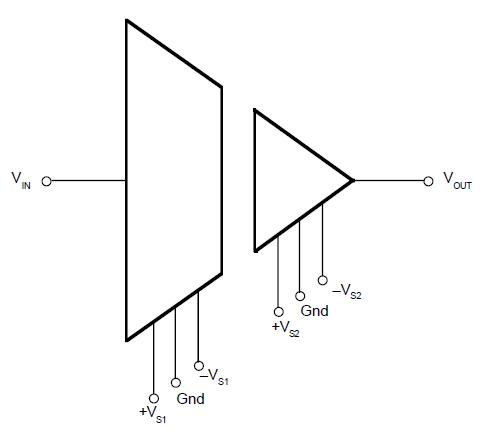

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO122P |
Texas Instruments |
Isolation Amplifiers Precision Low Cost Isolation Amp |
Data Sheet |
|
|
||||||||||||
|
ISO122PE4 |
Texas Instruments |
Isolation Amplifiers Precision Low Cost Isolation Amp |
Data Sheet |
|
|
||||||||||||
