Product Summary

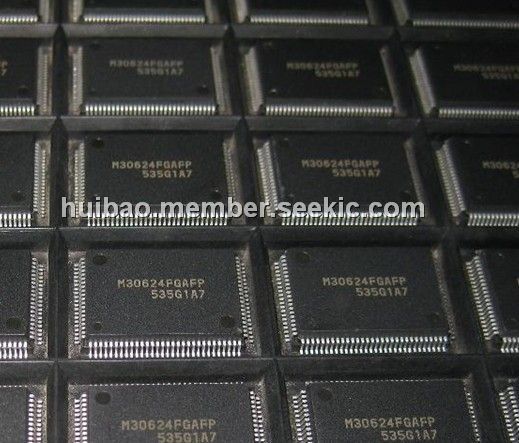

The M30624FGAFP is a single-chip microcomputer. It is built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. The M30624FGAFP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, the M30624FGAFP is capable of executing instructions at high speed. The M30624FGAFP also features a built-in multiplier and DMAC, making it ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.

Parametrics

M30624FGAFP absolute maximum ratings: (1)VCC, supply voltage: -0.3 to 6.5V; (2)Vi, input voltage: -0.3 to VCC+0.3V; (3)VO, output voltage: -0.3 to VCC+0.3V; (4)Pd, power dissipation: 300mW; (5)Topr, operating ambient temperature: -20 to 85℃; (6)Tstg, storage temperature: -65 to 150℃.

Features

M30624FGAFP features: (1)Memory capacity: ROM (See Figure 1.30.4. ROM Expansion); RAM 10K to 20K bytes; (2)Shortest instruction execution time: 100ns (f(XIN=10MHZ, VCC=2.7V to 3.6V); 142.9ns (f(XIN)=7MHZ, VCC=2.2V to 3.6V with software one-wait); (3)Supply voltage: 2.7V to 3.6V (f(XIN)=10MHZ, without software wait); 2.4V to 2.7V (f(XIN)=7MHZ, without software wait); 2.2V to 2.4V (f(XIN)=7MHZ with software one-wait); (4)Low power consumption: 28.5mW (VCC = 3V, f(XIN)=10MHZ, without software wait); (5)Interrupts: 25 internal and 8 external interrupt sources, 4 software interrupt sources; 7 levels (including key input interrupt); (6)Multifunction 16-bit timer: 5 output timers + 6 input timers; (7)Serial I/O: 5 channels (3 for UART or clock synchronous, 2 for clock synchronous); (8)DMAC: 2 channels (trigger: 24 sources); (9)A-D converter: 10 bits X 8 channels (Expandable up to 10 channels); (10)D-A converter: 8 bits X 2 channels; (11)CRC calculation circuit: 1 circuit; (12)Watchdog timer: 1 line; (13)Programmable I/O: 87 lines.

Diagrams

M30624FGAFP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M30624FGAFP#D3
M30624FGAFP#D3

IC M16C MCU FLASH 256K 100-QFP
Data Sheet
0-1: $27.88
M30624FGAFP#D5
M30624FGAFP#D5

IC M16C MCU FLASH 256K 100-QFP
Data Sheet
0-1: $26.54
M30624FGAFP#U3
M30624FGAFP#U3

IC M16C MCU FLASH 100QFP
Data Sheet
0-1: $27.88
1-10: $26.00
10-100: $22.61
100-250: $21.10
250-500: $20.05
500-1000: $19.22
1000-2500: $18.69
2500-5000: $18.09
M30624FGAFP#U5
M30624FGAFP#U5

IC M16C MCU FLASH 100QFP
Data Sheet
0-1: $26.54
1-10: $24.75
10-100: $21.52
100-250: $20.08
250-500: $19.08
500-1000: $18.29
1000-2500: $17.79
2500-5000: $17.22
