Product Summary

The MC33023DWG is a high speed, fixed frequency, single-ended pulse width modulator controller optimized for high frequency operation. The MC33023DWG is specifically designed for Off-Line and DC-to-DC converter applications offering the designer a cost-effective solution with minimal external components. These integrated circuits feature an oscillator, a temperature compensated reference, a wide bandwidth error amplifier, a high speed current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.

Parametrics

MC33023DWG absolute maximum ratings: (1)Power Supply Voltage, VCC: 30 V; (2)Output Driver Supply Voltage, VC: 20 V; (3)Output Current, Source or Sink, IO, DC: 0.5A; Pulsed (0.5μs): 2.0A; (4)Current Sense, Soft-Start, Ramp, and Error Amp Inputs, Vin: -0.3 to +7.0 V; (5)Error Amp Output and Soft-Start Sink Current, IO: 10 mA; (6)Clock and RT Output Current, ICO: 5.0 mA; (7)Operating Junction Temperature, TJ: +150 ℃; (8)Operating Ambient Temperature, TA: -40 to +105℃; (9)Storage Temperature Range, Tstg: -55 to +150℃.

Features

MC33023DWG features: (1)50 ns Propagation Delay to Output; (2)High Current Totem Pole Output; (3)Wide Bandwidth Error Amplifier; (4)Fully Latched Logic with Double Pulse Suppression; (5)Latching PWM for Cycle-By-Cycle Current Limiting; (6)Soft-Start Control with Latched Overcurrent Reset; (7)Input Undervoltage Lockout with Hysteresis; (8)Low Startup Current (500 μA Typ); (9)Internally Trimmed Reference with Undervoltage Lockout; (10)90% Maximum Duty Cycle (Externally Adjustable); (11)Precision Trimmed Oscillator; (12)Voltage or Current Mode Operation to 1.0 MHz; (13)Functionally Similar to the UC3823; (14)Pb?Free Packages are Available.

Diagrams

MC33023DWG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

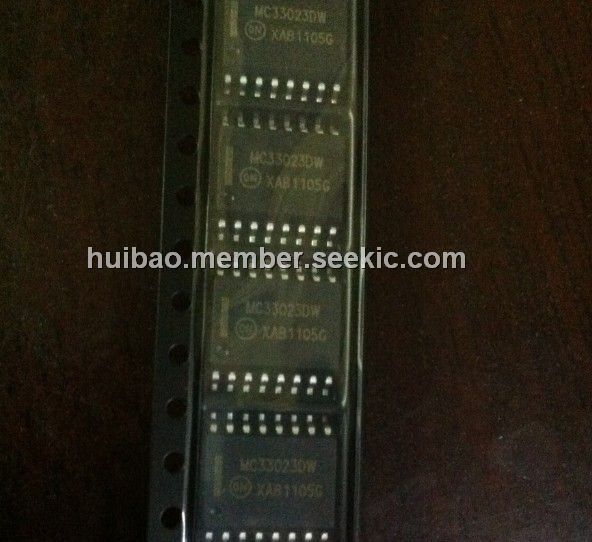

MC33023DWG
MC33023DWG

ON Semiconductor

Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM

Data Sheet

0-1: $3.14
1-25: $2.62
25-100: $1.60
100-500: $1.57
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC3302/4
MC3302/4

Other


Data Sheet

Negotiable
MC33023
MC33023

Other


Data Sheet

Negotiable
MC33023DW
MC33023DW

ON Semiconductor

Current Mode PWM Controllers Single Ended Voltage

Data Sheet

Negotiable
MC33023DWG
MC33023DWG

ON Semiconductor

Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM

Data Sheet

0-1: $3.14
1-25: $2.62
25-100: $1.60
100-500: $1.57
MC33023DWR2
MC33023DWR2

ON Semiconductor

Current Mode PWM Controllers Single Ended Voltage

Data Sheet

Negotiable
MC33023DWR2G
MC33023DWR2G

ON Semiconductor

Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM

Data Sheet

0-490: $1.87
490-500: $1.51
500-1000: $1.27
1000-2000: $1.21
