Product Summary

The MT2131F-02 is a high-performance single-chip tuner for ATSC and Digital Cable-Ready ATSC television receivers and set-top boxes. The MT2131F-02 receives frequencies in the 48 MHz to 1 GHz range and converts a selected channel to a standard intermediate frequency (IF) between 30 MHz and 57 MHz. The MT2131F-02 dual-conversion architecture yields consistent ATSCA/74 and FCC Digital Cable-Ready (DCR) compliant performance without any manual adjustments. The MT2131F is achieved via the combination of Microtune ClearTune technology and an autonomous automatic gain control(AGC).

Parametrics

MT2131F-02 absolute maximum ratings: (1)Supply voltage: 5V to 6 V; (2)Supply voltage: 3.3V to 3.6 V; (3)Storage temperature range: -50 to +150 ℃; (4)Lead-free temperature(soldering 4 seconds): +260 ℃; (5)Input voltage: -0.3 VCC to +0.3 V.

Features

MT2131F-02 features: (1)48 MHz to 1 GHz input frequency range; (2)Integrated front-end bandpass filtering; (3)Integrated RF power detectors and closed-loop AGC; (4)Programmable RF AGC; (5)Single-ended RF input; (6)On-chip low-noise amplifier provides excellent terrestrial sensitivity; (7)Integrated IF variable gain amplifier for direct connection to digital demodulators; (8)Fully compatible with ATSC, QAM, and NTSC performance requirements.

Diagrams

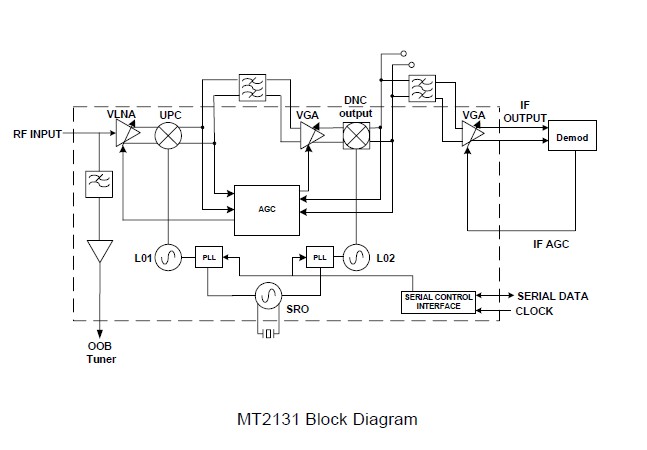

MT2131F-02 block diagram
