Product Summary

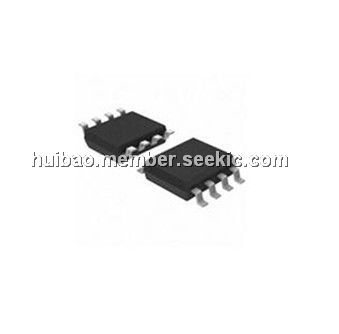

The X5163S8IZ-2.7 is a CPU Supervisor with 16Kbit SPI EEPROM. The X5163S8IZ-2.7 combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability.
Parametrics
X5163S8IZ-2.7 absolute maximum ratings: (1)Temperature under bias: –65 to +135℃; (2)Storage temperature: –65 to +150℃; (3)Voltage on any pin with respect to VSS: –1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10 seconds): 300℃.
Features
X5163S8IZ-2.7 features: (1)Selectable watchdog timer; (2)Low VCC detection and reset assertion: Five standard reset threshold voltages, Re-program low VCC reset threshold voltage using special programming sequence, Reset signal valid to VCC= 1V; (3)Determine watchdog or low voltage reset with a volatile flag bit; (4)Long battery life with low power consumption: <50μA max standby current, watchdog on, <1μA max standby current, watchdog off, <400μA max active current during read; (5)16Kbits of EEPROM.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X5163S8IZ-2.7 |
|
IC CPU SUPERV 16K EEPROM 8-SOIC |
Data Sheet |
|
|
||||||
|
X5163S8IZ-2.7A |
|
IC CPU SUPERV 16K EEPROM 8-SOIC |
Data Sheet |
|
|
||||||
|
X5163S8IZ-2.7T1 |
|
IC CPU SUPERV 16K EEPROM 8-SOIC |
Data Sheet |
|
|
||||||
