Product Summary

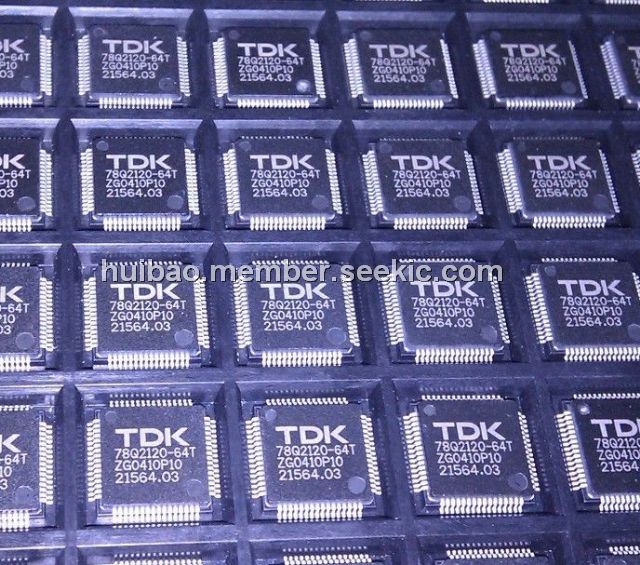

The 78Q2120-64CGT is a 10BASE-T/100BASE-TX Fast Ethernet transceiver. It includes integrated MII, ENDECs, scrambler/descrambler, dual-speed clock recovery, and full-featured auto-negotiation functions. The 78Q2120-64CGT includes an on-chip pulse-shaper and a low-power line driver. The receiver has an adaptive equalizer and a baseline restoration circuit required for accurate clock and data recovery. The 78Q2120-64CGT interfaces to Category-5 unshielded twisted pair (Cat-5 UTP) cabling for 100BASE-TX/10BASE-T and Category-3 unshielded twisted pair for 10BASE-T, and is connected to the line media via 1:1 isolation transformers. No external filter is required. Interface to the MAC is accomplished through an IEEE-802.3 compliant media independent interface (MII). The 78Q2120-64CGT is fabricated in a BiCMOS process for high performance and low power operation.

Parametrics

78Q2120-64CGT absolute maximum ratings: (1)DC Supply Voltage: 7 VDC; (2)Storage Temperature: -65 to 150℃; (3)Pin Voltage: -0.3 to (Vcc+0.3) VDC; (4)Pin Current: ± 100 mA.

Features

78Q2120-64CGT features: (1)10BASE-T/100BASE-TX IEEE-802.3 compliant TX and RX functions requiring a dual 1:1 isolation transformer interface to the line; (2)Integrated MII, 10BASE-T/100BASE-TX ENDEC, 100BASE-TX scrambler/descrambler, and full-featured auto-negotiation function; (3)Full duplex operation capable; (4)PCS Bypass supports 5-bit symbol interface; (5)Dual speed clock recovery; (6)Automatic polarity correction during auto-negotiation and 10BASE-T signal reception; (7)Power-saving and power-down modes including transmitter disable; (8)LED indicators: LINK,TX,RX,COL,100,10,FDX; (9)User programmable Interrupt pin; (10)64-Pin TQFP (JEDEC LQFP) package; (11)Single 3.3 V ± 0.3V Supply.

Diagrams

78Q2120-64CGT block diagram

78Q2120
78Q2120
