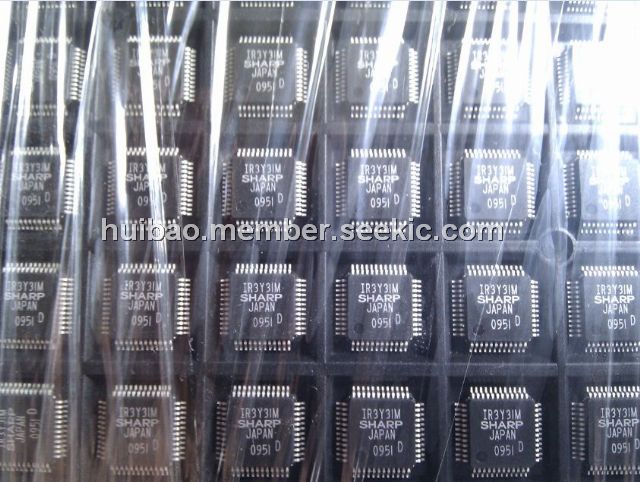

Product Summary

The IR3Y31M is a video interface IC that can be adapted for use with digital TFT color liquid crystal display equipment, and because the IR3Y31M can be used with composite video, Y/C, and analog RGB signal input, it is highly suited to systems that display television images, such as car navigation and portable DVD players.

Parametrics

IR3Y31M general specifications: (1)Supply voltage: 2.7 to 3.6 V, 6.5 to 8.0 V ; (2)Power consumption: 330 mW(TYP.) ; (3)ADC clock frequency: 36 MHz (MAX.) ; (4)Operating temperature: -30 to 85℃.

Features

IR3Y31M features: (1)For digital signal input TFT-LCD panel ; (2)Built-in composite video input signal, Y/C input signal, analog RGB input signal; (3)Built-in 8-bit 3ch ADC; (4)For VGA wide (800 x 480 dot, aspect ratio 16:9); (5)16-bit YUV output mode; (6)Color decode: NTSC/PAL; (7)Package: 72QFP(P-QFP072-1010).

Diagrams

IR3Y31M block diagram
