Product Summary

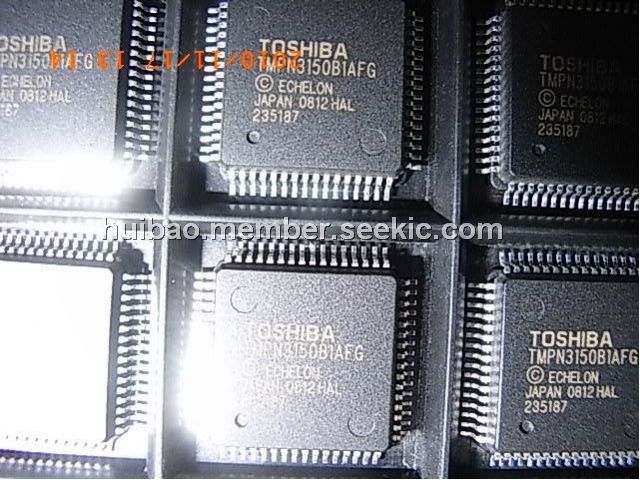

The TMPN3150B1AFG is a neuron chip which configures lonworks nodes in combination with external memory. Neuron chip has all the built-in communications and control functions required to implement lonworks nodes. The TMPN3150B1AFG may then be easily integrated into highly-reliable distributed intelligent control networks. The typical functions for this chip are explained below.
Parametrics
TMPN3150B1AFG absolute maximum ratings: (1)Power Supply Voltage VDD: -0.3 to 7.0 V; (2)Input Voltage VIN: -0.3 to VDD+0.3 V; (3)Power Dissipation PD: 800 mW; (4)Storage Temperature Tstg: -65~150 ℃.
Features
TMPN3150B1AFG features: (1)Two CPUs for communication protocol processing built in; (2)The communications and application CPUs execute in parallel; (3)Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with ISO; (4)Highly reliable communication protocol is supplied as firmware; (5)Built-in twisted-pair wire transceiver Equipped with communications modes and communication speeds which support various types of external transceivers; (6)Supports twisted-pair wire, power line, radio ( RF ), infrared, coaxial cables and fiber optics; (7)Communication port transceiver modes and logical addresses stored within the EEPROM; (8)Can be amended via the network.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMPN3150B1AFG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMPN3150B1AFG(I) |
Toshiba |
Network Controller & Processor ICs Neuron Chip w/ ext ROM I/F |
Data Sheet |
Negotiable |
|
||||
