Product Summary

The ISO122JP is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation, the barrier characteristics of the ISO122JP do not affect signal integrity, resulting in excellent reliability and good high frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The applications of the ISO122JP include industrial process control: Transducer Isolator, Isolator for Thermo-couples, RTDs, Pressure Bridges, and Flow Meters, 4mA to 20mA Loop Isolation, ground loop elimination, motor and SCR Control, power monitoring, PC-based data acquisition and test equipment.

Parametrics

ISO122JP absolute maximum ratings: (1)Supply Voltage: ±18V; (2)VIN: ±100V; (3)Continuous Isolation Voltage: 1500Vrms; (4)Junction Temperature: +150℃; (5)Storage Temperature: +85℃; (6)Lead Temperature (soldering, 10s): +300℃; (7)Output Short to Common: Continuous.

Features

ISO122JP features: (1)100% tested for high-voltage breakdown; (2)rated 1500Vrms; (3)high IMR: 140dB at 60Hz; (4)bipolar operation: VO = ±10V; (5)16-pin plastic DIP and 28-lead SOIC; (6)ease of use: Fixed Unity Gain Configuration; (7)0.020% max nonlinearity; (8)±4.5V to ±18V supply range.

Diagrams

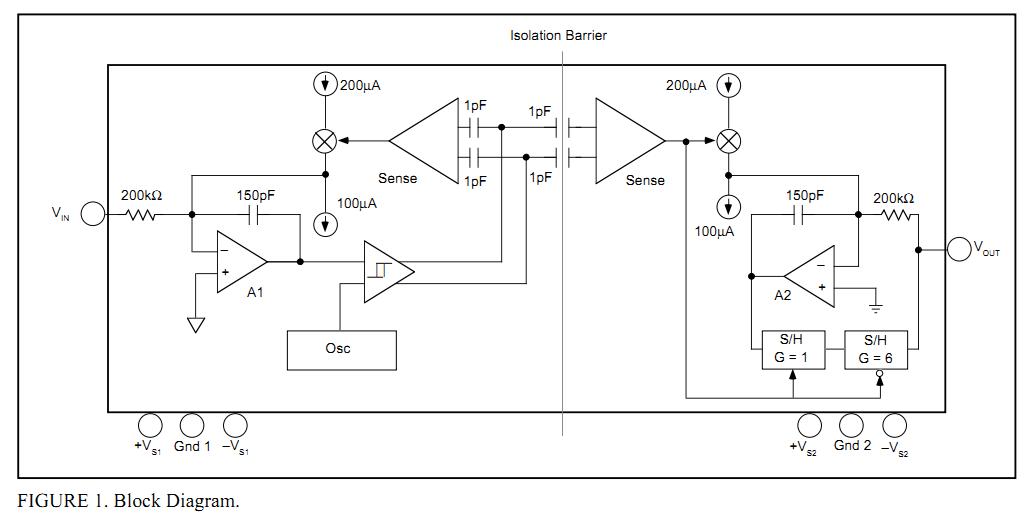

ISO122JP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ISO122JP
ISO122JP
Texas Instruments
Isolation Amplifiers Precision Low Cost Isolation Amp
Data Sheet
0-1: $12.88
1-10: $11.72
10-25: $10.82
25-50: $10.46
ISO122JPE4
ISO122JPE4
Texas Instruments
Isolation Amplifiers Precision Low Cost Isolation Amp
Data Sheet
0-1: $12.88
1-10: $11.72
10-25: $10.82
25-50: $10.46
