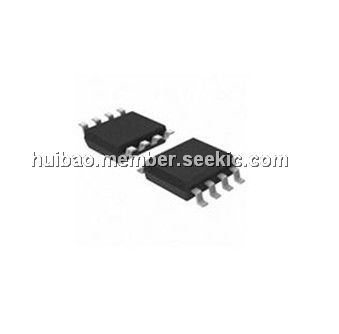

LT1368CS8#TRPBF

bipolar op amplifier, SOIC 8-Pin, ±15mA, 36V, LT1368CS8#TRPBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~0.80

PartNumber:: LT1368CS8#TRPBF

Brand:: Linear Technology - Linear | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-30

From Other Seller

Part Number:LT1368CS8#TRPBF
US $0.65 - 0.80
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

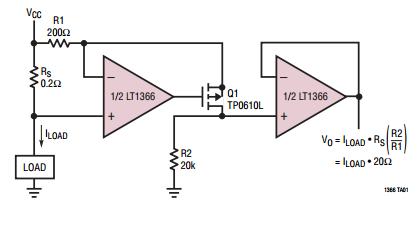

The LT1368CS8#TRPBF is a bipolar op amplifier which combines rail-to-rail input and output operation with precision specifications. The LT1368CS8#TRPBF maintains its characteristics over a supply range of 1.8V to 36V. The applications of the LT1368CS8#TRPBF are Rail-to-Rail Buffer Amplifiers, Low Voltage Signal Processing, Supply Current Sensing at Either Rail, Driving A/D Converters.

Parametrics

LT1368CS8#TRPBF absolute maximum ratings: (1)Total Supply Voltage (V+ to V–) :36V; (2)Input Current :±15mA; (3)Output Short-Circuit Duration: Continuous; (4)Operating Temperature Range:–40℃ to 85℃; (5)Specified Temperature Range: 0℃ to 70℃; (6)Junction Temperature:150℃; (7)Storage Temperature Range:–65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec):300℃.

Features

LT1368CS8#TRPBF features: (1)Input Common Mode Range Includes Both Rails; (2)Output Swings Rail-to-Rail; (3)Low Input Offset Voltage: 150uV; (4)High Common Mode Rejection Ratio: 90dB; (5)High AVOL: >1V/uV Driving 10k Load; (6)Low Input Bias Current: 10nA; (7)Wide Supply Range: 1.8V to ±15V; (8)Low Supply Current: 375uA per Amplifier; (9)High Output Drive: 30mA; (10)400kHz Gain-Bandwidth Product; (11)Slew Rate: 0.13V/us; (12)Stable for Capacitive Loads Up to 1000pF.
