Product Summary

The AD96687BPZ is an ultrafast voltage comparator. The device is an equally fast dual comparator. The AD96687BPZ features 50 ps propagation delay dispersion which is a particularly important characteristic of high speed comparators. It is a measure of the difference in propagation delay under differing overdrive conditions. The applications of the AD96687BPZ include: High Speed Triggers, High Speed Line Receivers, Threshold Detectors, Window Comparators, Peak Detectors.

Parametrics

AD96687BPZ absolute maximum ratings: (1)Positive Supply Voltage (+VS): +6.5 V; (2)Negative Supply Voltage (–VS): –6.5 V; (3)Input Voltage Range: ±5 V; (4)Differential Input Voltage: 5.5 V; (5)Latch Enable Voltage: –VS to 0 V; (6)Output Current: 30 mA; (7)Operating Temperature Range: –25℃ to +85℃; (8)Storage Temperature Range: –55℃ to +150℃; (9)Junction Temperature: +175℃; (10)Lead Soldering Temperature (10 sec): +300℃.

Features

AD96687BPZ features: (1)Fast: 2.5 ns Propagation Delay; (2)Low Power: 118 mW per Comparator; (3)Packages: DIP, TO-100, SOIC, PLCC; (4)Power Supplies: +5 V, –5.2 V; (5)Logic Compatibility: ECL; (6)MIL-STD-883 Versions Available; (7)50 ps Delay Dispersion.

Diagrams

AD96687BPZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD96687BPZ
AD96687BPZ

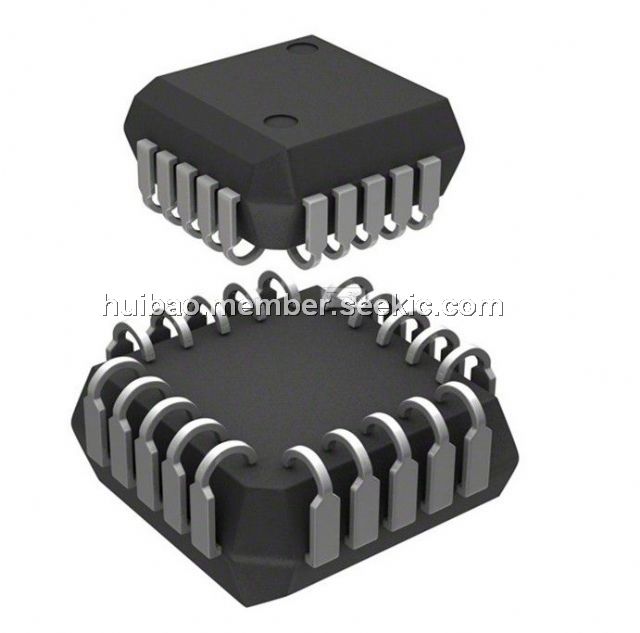

IC COMPARATOR DUAL 2.5NS 20-PLCC

Data Sheet

0-1: $4.42
1-10: $3.97
10-100: $3.27
100-250: $3.00
250-500: $2.74
500-1000: $2.38
1000-2500: $2.35
