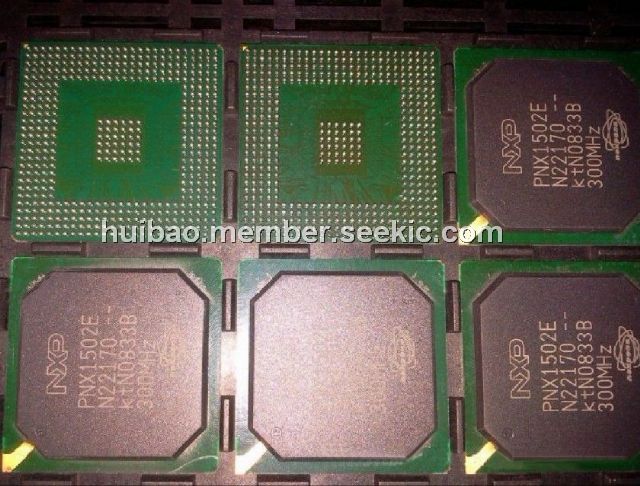

Product Summary
The PNX1502E is a complete Audio/Video/Graphics system on a chip that contains a high-performance 32-bit VLIW processor, TriMedia TM3260, capable of high quality software video (multi-video standard digital decoder/encoder and image improvement), audio signal processing, as well as general purpose control processing. The PNX1502E can either be used in standalone, or as an accelerator to a general purpose processor.
Parametrics
PNX1502E absolute maxing ratings: (1)VCCP 3.3V I/O supply voltage: min=-0.5V, max=4.6V; (2)VCCM 2.5V DDR I/O supply voltage: min=-0.5V, max=3.6V; (3)VDD 1.2-1.3-V Core supply voltage: min=-0.5V, max=1.7V; (4)VICCP Input voltage for 5 V tolerant input pins (i.e. pins supplied by VCCP): min=-0.5V, max=6.0V; (5)Tstg Storage temperature range: min=-65℃, max=150℃; (6)Tcase Operating case temperature range: min=0, max=120℃; (7)HBMESD Human Body Model Electrostatic handling for all pins: max=2000V; (8)MMESD Machine Model Electrostatic handling for all pins: max=150V.
Features
PNX1502E features: (1)32-bit, up to 300 MHz 5-issue VLIW CPU with 128 32-bit registers and an extensive set of video and audio media instructions; (2)Variable Length Decoder assist engine; (3)Integrated DVD descrambler for DVD playback functionality; (4)32-bit, 33 MHz PCI 2.2 interface with integrated PCI bus arbiter up to 4 masters; (5)Glueless NOR and NAND 8- or 16-bit Flash interface; (6)4 timers/counters, capable of counting internal and external events; (7)Additional multiplexed General Purpose I/O pins; (8)On-chip MPEG-1 and MPEG-2 VLD to facilitate transrating, transcoding and software SD MPEG decoding; (9)10/100 RMII and MII IEEE 802.3 PHY interface.

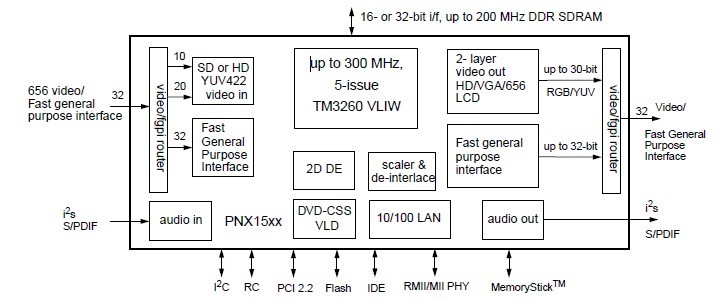

Diagrams
