Product Summary

The MAX485CSA+T is a low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX485CSA+T features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX485CSA+T is not limited, allowing them to transmit up to 2.5Mbps. The transceiver draws between 120μA and 500μA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX485CSA+T has a low-current shutdown mode in which they consume only 0.1μA. All parts operate from a single 5V supply. Driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.

Parametrics

MAX485CSA+ absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX485CSA+T features: (1)For Fault-Tolerant Applications; (2)For Space-Constrained Applications; (3)For Multiple Transceiver Applications; (4)For Fail-Safe Applications; (5)For Low-Voltage Applications.

Diagrams

MAX485CSA+T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

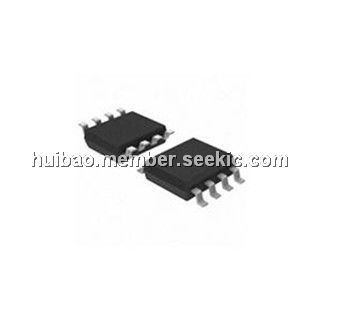

MAX485CSA+T
MAX485CSA+T

Maxim Integrated Products

RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver

Data Sheet

0-1: $1.78
1-25: $1.20
25-50: $0.97
50-250: $0.95
