Product Summary

The MAX6192AESA+T is a precision, micropower, low-dropout voltage reference offer high initial accuracy and very low temperature coefficient through a proprietary curvature-correction circuit and lasertrimmed precision thin-film resistors. The reference draws a maximum of only 35μA quiescent supply current, making it ideal for battery-powered instruments. The applications of the MAX6192AESA+T include Hand-Held Instruments, Analog-to-Digital and Digital-to-Analog Converters, Industrial Process Control, Precision 3V/5V Systems, Hard-Disk Drives.

Parametrics

MAX6192AESA+T absolute maximum ratings: (1)IN: -0.3V to +13.5V; (2)OUT: -0.3V to (VIN + 0.3V); (3)Output Short Circuit to GND or IN (VIN < 6V): Continuous; (4)Output Short Circuit to GND or IN (VIN ≥ 6V): 60s; (5)Continuous Power Dissipation (TA = +70℃); (6)8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (7)Operating Temperature Range: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX6192AESA+T features: (1)±2mV (max) Initial Accuracy; (2)5ppm/℃ (max) Temperature Coefficient; (3)35μA (max) Supply Current; (4)100mV Dropout at 500μA Load Current; (5)0.12μV/μA Load Regulation; (6)8μV/V Line Regulation.

Diagrams

MAX6192AESA+T circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

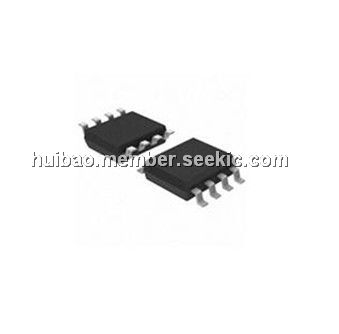

MAX6192AESA+T
MAX6192AESA+T

Maxim Integrated Products

Voltage & Current References Precision uPower Voltage Ref

Data Sheet

0-2085: $1.61
2085-2500: $1.61
