Product Summary

The MC33887DH is a monolithic H-Bridge Power IC with a load current feedback feature making it ideal for closed-loop DC motor control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. The MC33887DH is able to control inductive loads with continuous DC load currents up to 5.0 A, and with peak current active limiting between 5.2 A and 7.8 A. Output loads can be pulse width modulated (PWM-ed) at frequencies up to 10 kHz. The MC33887DH load current feedback feature provides a proportional (1/375th of the load current) constant-current output suitable for monitoring by a microcontroller’s A/D input. This feature facilitates the design of closed-loop torque/speed control as well as open load detection.

Parametrics

MC33887DH absolute maximum ratings: (1)Supply Voltage, V+: -0.3 to 40 V; (2)Input Voltage, VIN: - 0.3 to 7.0 V; (3)FS Status Output, VFS: -0.3 to 7.0 V; (4)Continuous Current, IOUT: 5.0 A; (5)DH Suffix HSOP ESD Voltage, Each Pin to AGND, VESD1: ±1000V; Each Pin to PGND, VESD1: ±1500V; Each Pin to V+, VESD1: ±2000V; Each I/O to All Other I/Os, VESD1: ±2000V; Machine Model , VESD2: ±200V; (6)VW Suffix HSOP, SOICW-EP, and PQFN ESD Voltage, Machine Model, VESD1: ±2000V; VESD2: ±200V.

Features

MC33887DH features: (1)Fully specified operation 5.0 V to 28 V; (2)Limited operation with reduced performance up to 40 V; (3)120 mΩ RDS(ON) Typical H-Bridge MOSFETs; (4)TTL/CMOS Compatible Inputs; (5)PWM Frequencies up to 10 kHz ; (6)Active Current Limiting (Regulation); (7)Fault Status Reporting; (8)Sleep Mode with Current Draw ≤50 μA (Inputs Floating or Set to Match Default Logic States); (9)Pb-Free Packaging Designated by Suffix Codes VW and EK.

Diagrams

MC33887DH internal block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

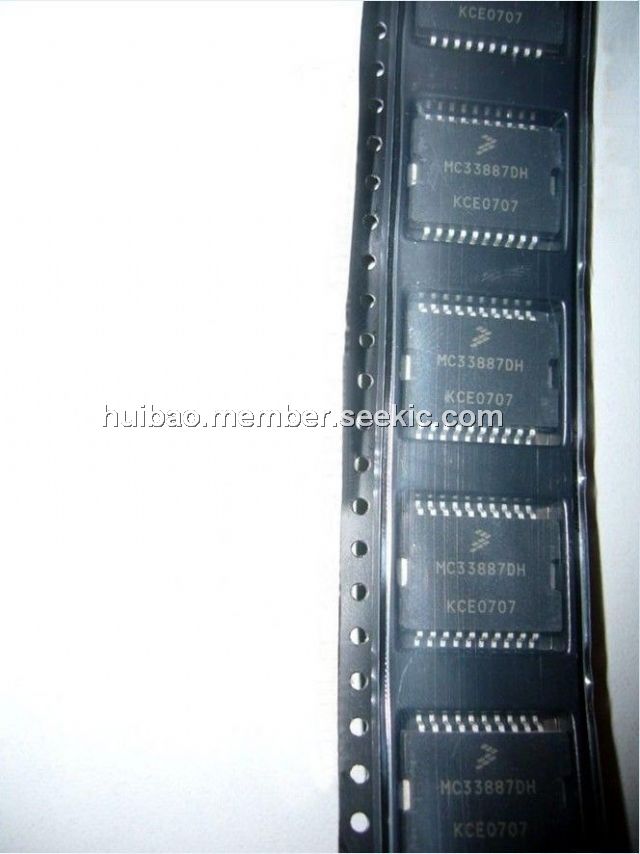

MC33887DH
MC33887DH


IC H-BRIDGE 5.0A W/CS 20-HSOP

Data Sheet

Negotiable
MC33887DHR2
MC33887DHR2


IC H-BRIDGE 5A CURR FDBK 20-HSOP

Data Sheet

0-750: $2.56
