Product Summary

The MC9S12C32MPBE16 is a flash-based MCU, which delivers the power and flexibility of the 16-bit core to a whole new range of cost and space sensitive, general purpose industrial and automotive network applications. The MC9S12C32MPBE16 features standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of Flash EEPROM, up to 4K bytes of RAM, an asynchronous serial communications interface (SCI), a serial peripheral interface (SPI), an 8-channel 16-bit timer module (TIM), a 6-channel 8-bit pulse width modulator (PWM), an 8-channel, 10-bit analog-to-digital converter (ADC).

Parametrics

MC9S12C32MPBE16 absolute maximum ratings: (1)I/O, Regulator and Analog Supply Voltage, VDD5: -0.3 to 6.5 V; (2)Digital Logic Supply Voltage, VDD: -0.3 to 3.0 V; (3)PLL Supply Voltage, VDDPLL: -0.3 to 3.0 V; (4)Voltage difference VDDX to VDDR and VDDA, ΔVDDX: -0.3 to 0.3 V; (5)Voltage difference VSSX to VSSR and VSSA, ΔVSSX: -0.3 to 0.3 V; (6)Digital I/O Input Voltage, VIN: -0.3 to 6.5 V; (7)Analog Reference, VRH, VRL: -0.3 to 6.5 V; (8)XFC, EXTAL, XTAL inputs, VILV: -0.3 to 3.0 V; (9)TEST input, VTEST: -0.3 to 10.0 V; (10)Instantaneous Maximum Current Single pin limit for all digital I/O pins, ID: -25 to +25 mA; (11)Instantaneous Maximum Current Single pin limit for XFC, EXTAL, XTAL, IDL: -25 to +25 mA; (12)Instantaneous Maximum Current Single pin limit for TEST, IDT: -0.25 to 0 mA; (13)Operating Temperature Range (packaged), TA: -40 to 125℃; (14)Operating Temperature Range (junction), TJ: -40 to 140℃; (15)Storage Temperature Range, Tstg: -65 to 155℃.

Features

MC9S12C32MPBE16 features: (1)16-bit HCS12 core: HCS12 CPU: Upward compatible with M68HC11 instruction set; Interrupt stacking and programmer model identical to M68HC11; Instruction queue; Enhanced indexed addressing; MMC (memory map and interface); INT (interrupt control); BDM (background debug mode); DBG12 (enhanced debug12 module, including breakpoints and change-of-flow trace buffer); MEBI (multiplexed expansion bus interface) available only in 80-pin package version; (2)Wake-up interrupt inputs: Up to 12 port bits available for wake up interrupt function with digital filtering; (3)Memory options: 16K or 32Kbyte Flash EEPROM (erasable in 512-byte sectors) 64K, 96K, or 128Kbyte Flash EEPROM (erasable in 1024-byte sectors); 1K, 2K or 4K Byte RAM; (4)Analog-to-digital converters: One 8-channel module with 10-bit resolution; External conversion trigger capability; (5)Available on MC9S12C Family: One 1M bit per second, CAN 2.0 A, B software compatible module; Five receive and three transmit buffers; Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit, or 8 x 8 bit; Four separate interrupt channels for Rx, Tx, error, and wake-up; Low-pass filter wake-up function; Loop-back for self test operation.

Diagrams

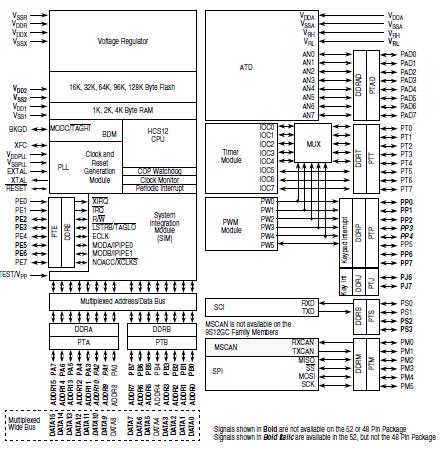

MC9S12C32MPBE16 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

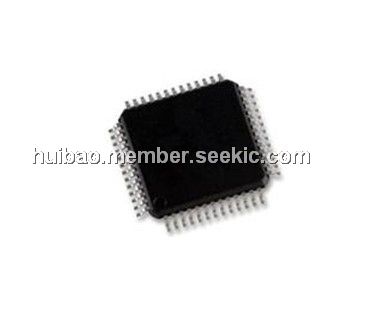

MC9S12C32MPBE16
MC9S12C32MPBE16

Freescale Semiconductor

16-bit Microcontrollers (MCU) GOLDFISH

Data Sheet

0-82: $5.43
82-100: $3.40
