OP275GSZ-REEL7

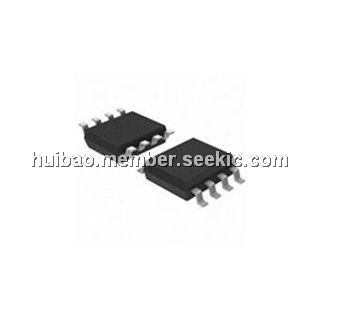

OP275GSZ-REEL7, audio operational amplifier, SOIC-8, 22V, 5mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.65

PartNumber:: OP275GSZ-REEL7

Brand:: Analog Devices - ADI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-30

From Other Seller

Part Number:OP275GSZ-REEL7
US $0.50 - 0.65
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OP275GSZ-REEL7 is a dual bipolar/JFET, audio operational amplifier to feature the Butler Amplifier front end. This new front end design combines both bipolar and JFET transistors to attain amplifiers with the accuracy and low noise performance of bipolar transistors, and the speed and sound quality of JFETs. Total Harmonic Distortion plus Noise equals that of previous audio amplifiers, but at much lower supply currents. The applications of the OP275GSZ-REEL7 include High Performance Audio, Active Filters, Fast Amplifiers, Integrators.

Parametrics

OP275GSZ-REEL7 absolute maximum ratings: (1)Supply Voltage: ±22 V; (2)Input Voltage: ±22 V; (3)Differential Input Voltage: ±7.5 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature RangeP, S Packages: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature Range P, S Packages: 65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

OP275GSZ-REEL7 features: (1)Excellent Sonic Characteristics; (2)Low Noise: 6 nV/√Hz; (3)Low Distortion: 0.0006%; (4)High Slew Rate: 22 V/μs; (5)Wide Bandwidth: 9 MHz; (6)Low Supply Current: 5 mA; (7)Low Offset Voltage: 1 mV; (8)Low Offset Current: 2 nA; (9)Unity Gain Stable; (10)SOIC-8 Package; (11)PDIP-8 Package.
