Product Summary

The XC95288XL-10TQG144C is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of 16 54V18 Function Blocks, providing 6,400 usable gates with propagation delays of 6 ns.

Parametrics

XC95288XL-10TQG144C absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to 4.0 V; (2)VIN Input voltage relative to GND: –0.5 to 5.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to 5.5 V; (4)TSTG Storage temperature (ambient): –65 to +150 ℃; (5)TJ Junction temperature: +150 ℃.

Features

XC95288XL-10TQG144C features: (1)6 ns pin-to-pin logic delays; (2)System frequency up to 208 MHz; (3)288 macrocells with 6,400 usable gates; (4)Available in small footprint packages; (5)Optimized for high-performance 3.3V systems; (6)Fast concurrent programming; (7)Slew rate control on individual outputs; (8)Enhanced data security features; (9)Excellent quality and reliability.

Diagrams

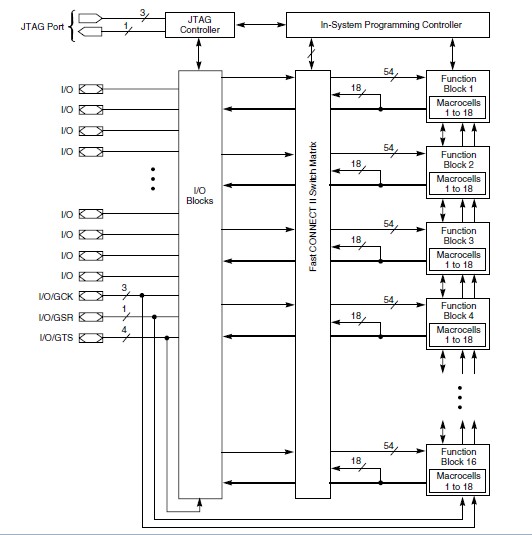

XC95288XL-10TQG144C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC95288XL-10TQG144C
XC95288XL-10TQG144C


IC CPLD 6.4K 288MCELL 144-TQFP

Data Sheet

0-1: $8.82
1-25: $8.07
25-100: $7.62
