Product Summary

The AD680ARZ-REEL7 is a bandgap voltage reference which provides a fixed 2.5 V output from inputs between 4.5 V and 36 V. The architecture of the AD680ARZ-REEL7 enables the reference to be operated at a very low quiescent current while still realizing excellent dc characteristics and noise performance. Trimming of the high stability thin-film resistors is performed for initial accuracy and temperature coefficient, resulting in low errors over temperature. The precision dc characteristics of the AD680ARZ-REEL7 make it ideal for use as a reference for D/A converters which require an external precision reference. The device is also ideal for A/D converters and, in general, can offer better performance than the standard on-chip references.

Parametrics

AD680ARZ-REEL7 absolute maximum ratings: (1)VIN to Ground: 36V; (2)Power Dissipation(25℃): 500mW; (3)Storage Temperature: -65℃ to +125℃; (4)Lead Temperature (Soldering, 10 sec): 300℃; (5)Package Thermal Resistance θJA (All Packages): 120℃/W.

Features

AD680ARZ-REEL7 features: (1)Low quiescent current at 250μA max; (2)Laser trimmed to high accuracy:2.5 V ± 5 mV max (AN, AR grades); (3)Trimmed temperature coefficient: 20 ppm/℃ max (AN, AR grades); (4)Low noise at 8μV p-p from 0.1 Hz to 10 Hz; (5)250 nV/√Hz wideband; (6)Temperature output pin (N, R packages).

Diagrams

AD680ARZ-REEL7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

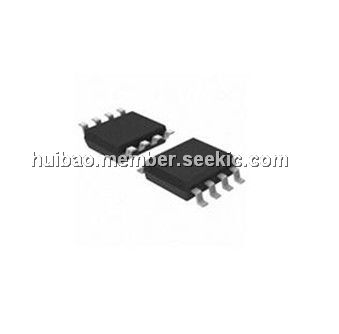

AD680ARZ-REEL7
AD680ARZ-REEL7


IC VREF SERIES PREC 2.5V 8-SOIC

Data Sheet

0-750: $2.57
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD680
AD680

Other


Data Sheet

Negotiable
AD680*
AD680*

Other


Data Sheet

Negotiable
AD680AN
AD680AN

Analog Devices Inc

IC V-REF 2.5V LP 8-DIP

Data Sheet

1-50: $2.72
AD680ANZ
AD680ANZ


IC VREF SERIES PREC 2.5V 8-PDIP

Data Sheet

0-1: $4.49
1-10: $4.05
10-25: $3.69
25-100: $3.33
100-250: $3.06
250-500: $2.79
500-1000: $2.43
1000-2500: $2.40
AD680AR
AD680AR

Analog Devices Inc

IC V-REF 2.5V LP 8-SOIC

Data Sheet

1-98: $3.23
AD680AR-REEL
AD680AR-REEL

Analog Devices Inc

IC V-REF 2.5V LP 8-SOIC T/R

Data Sheet

1-2500: $2.50
