Product Summary

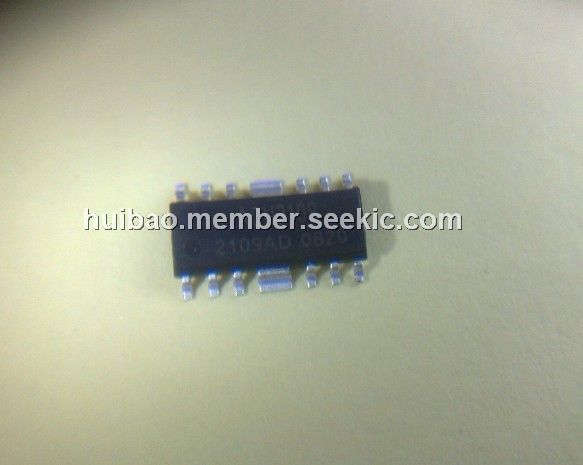

The ACU2109 is a Monolithic GaAs IC incorporating all upconverter functions of a double conversion CATV, Cable Modem and TV tuner: gain block, oscillator and a double balanced mixer. The ACU2109 is well suited for double conversion tuner designs in which small size and high performance for both Digital and Analog TV signals is important. It allows tuner manufacturers to reduce costs by lowering component count and dispensing with labor intensive production alignment steps, while improving performance and reliability. The ACU2109 is offered in a low profile 16-lead modified SOIC package, and it requires only a single +5 Volt power supply. The applications of it are CATV/TV Tuners and Cable Modem Tuners.

Parametrics

ACU2109 absolute maximum ratings: (1)VIF, VIO, VOSC: 0VDC to +9VDC; (2)VRF/VTUNE: 0VDC; (3)RF input voltage: +60dBmV; (4)storage temperature: +55℃ to +200℃; (5)soldering temperature: +260℃; (6)soldering time:5sec.

Features

ACU2109 features: (1)Integrated Monolithic GaAs Upconverter; (2)Designed for Digital and Analog TV Tuners; (3)Very Low Oscillator Phase Noise; (4)Low Noise Figure and Low Distortion; (5)Low Power Consumption; (6)Small Size; (7)Can be Shut Down Remotely; (8)Operates from 5 Volt Power Supply; (9)High Reliability.

Diagrams

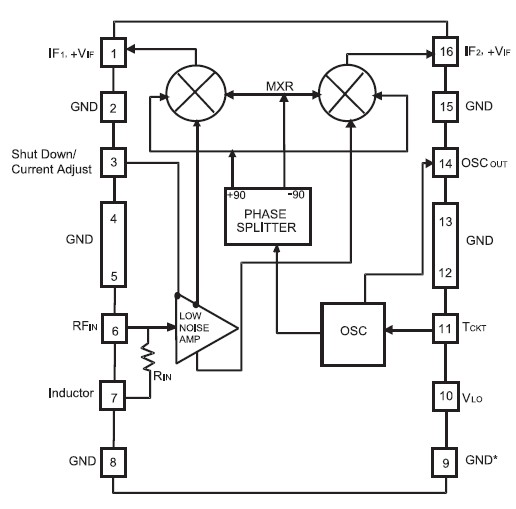

ACU2109 block diagram
