Product Summary
The ADM1485 is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422. Up to 32 transceivers may be connected simultaneously on a bus, but only one driver should be enabled at any time. This minimizes the loading effect when the transceiver is not being utilized. The high impedance driver output is maintained over the entire common-mode voltage range from –7 V to +12 V. Applications of ADM1485 are: (1)Low Power RS-485 Systems; (2)DTE-DCE Interface; (3)Packet Switching; (4)Local Area Networks; (5)Data Concentration; (6)Data Multiplexers; (7)Integrated Services Digital Network (ISDN).
Parametrics
ADM1485AR absolute maximum ratings: (1)VCC: +7 V; (2)Driver Input (DI): -0.3 V to VCC + 0.3 V; (3)Control Inputs (DE, RE): -0.3 V to VCC + 0.3 V; (4)Receiver Inputs (A, B): -14 V to +14 V; (5)Driver Outputs: -14 V to +14 V; (6)Receiver Output : -0.5 V to VCC + 0.5 V; (7)Power Dissipation 8-Lead DIP: 500 mW; (8)Thermal Impedance: +130℃ /W; (9)Power Dissipation 8-Lead SOIC : 450 mW; (10)Thermal Impedance : +170℃ /W; (11)Power Dissipation 8-Lead Cerdip: 500 mW; (12)Thermal Impedance: +125℃ /W; (13)Operating Temperature Range; (14)Commercial (J Version): 0℃ to +70℃ ; (15)Industrial (A Version) : -40℃ to +85℃ ; (16)Storage Temperature Range: -65℃ to +150℃ ; (17)Lead Temperature (Soldering, 10 sec): +300℃ (18)Vapor Phase (60 sec): +215℃ ; (19)Infrared (15 sec): +220℃.
Features
ADM1485AR features: (1)Meets EIA RS-485 Standard; (2)30 Mb/s Data Rate; (3)Single +5 V Supply; (4)–7 V to +12 V Bus Common-Mode Range; (5)High Speed, Low Power BiCMOS; (6)Thermal Shutdown Protection; (7)Short Circuit Protection; (8)Zero Skew Driver; (9)Driver Propagation Delay: 10 ns; (10)Receiver Propagation Delay: 25 ns; (11)High Z Outputs with Power Off; (12)Superior Upgrade for LTC1485.

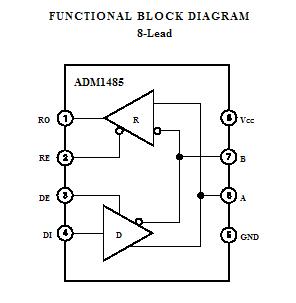

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADM1485ARZ-REEL7 |
IC TXRX RS-485 5V HS 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||||||
