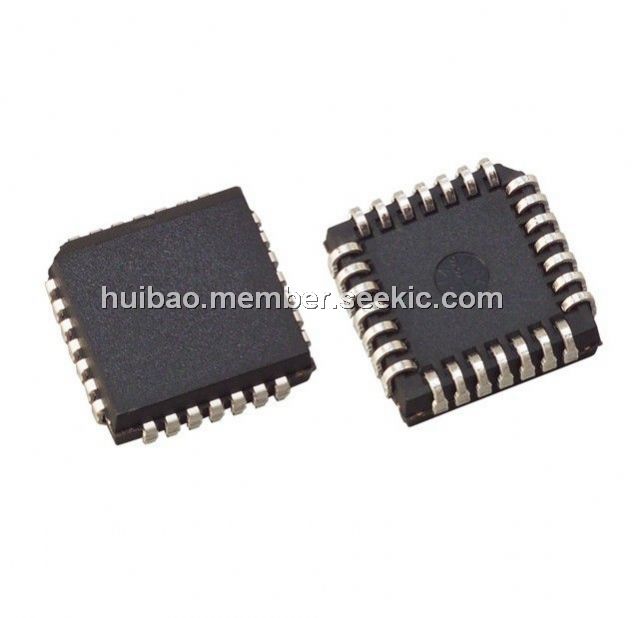

ADG407BPZ

CMOS analog multiplexer, 28-PLCC, –0.3 V to +25 V, 20 mA, Low On Resistance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.45~1.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.45~1.70

PartNumber:: ADG407BPZ

Brand:: Analog Devices - ADI | Pack: PLCC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0
