Product Summary

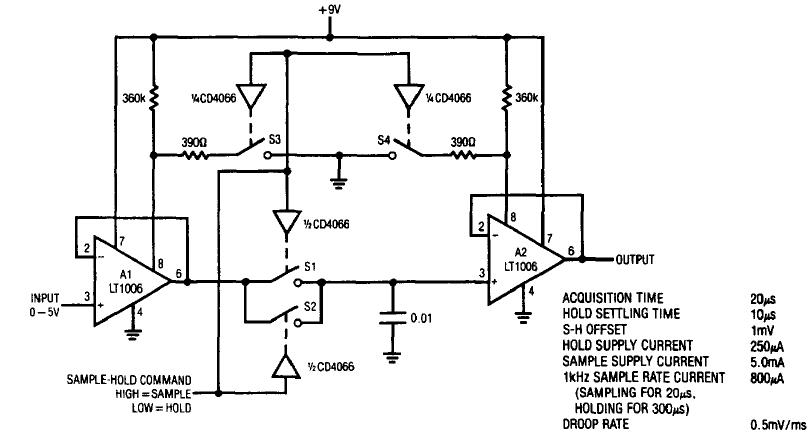

The LT1006S8#TRPBF is a precision single supply operational amplifier. Its design has been optimized for single supply operation with a full set of specifications at 5V. Specifications at ±15V are also provided. The LT1006S8#TRPBF has low offset voltage of 80μV, drift of 0.7μV/℃, offset current of 150pA, gain of 2 million, com-mon.mode rejection of 112dB, and power supply rejection of 126dB. Although supply current is only 350/μA, a novel output stage can source or sink in excess of 20mA while retaining high voltage gain. The applications of the LT1006S8#TRPBF include Low Power Sample and Hold Circuits, Battery Powered Precision Instrumentation Strain Gauge Signal Conditioners Thermocouple Amplifiers, 4mA-20mA Current Loop Transmitters, Active Filters.

Parametrics

LT1006S8#TRPBF absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (3)Differential Input Voltage: 30V; (4)Output Short Circuit Duration: Indefinite; (5)Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1006S8#TRPBF features: (1)Single Supply Operation, Input Voltage Range Extends to Ground; Output Swings to Ground while Sinking Current; (2)Guaranteed Offset Voltage, 400μV Max; (3)Guaranteed Low Drift, 3.5μV/℃ Max; (4)Guaranteed Offset Current, 0.9nA Max; (5)Guaranteed, 5mA Load Current: 1.2 Million Min; 17mA Load Current: 0.5 Million Min; (6)Guaranteed Low Supply Current, 570μA Max; (7)Supply Current can be Reduced by a Factor of 4; (8)Low Voltage Noise, 0.1 Hz to 10Hz, 0.55μVp-p; (9)Low Current Noise-Better than OP-07, 0.08pA√Hz at 10Hz; (10)High Input Impedance, 100MΩMin; (11)Guaranteed Minimum Supply Voltage, 2.7V Min.
