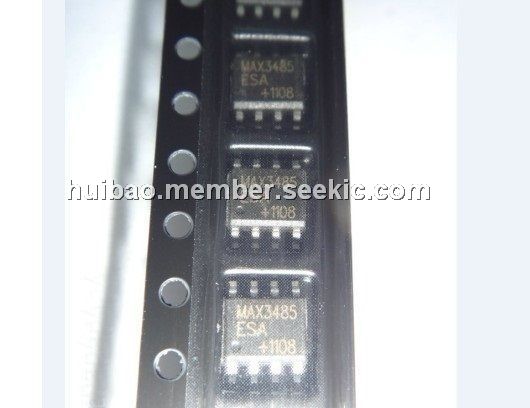

MAX3485CSA

low-power transceiver , 10MBPS, 8SOIC, 3.3V, 2nA, 471mW, MAX3485CSA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~1.90

PartNumber:: MAX3485CSA

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-24

From Other Seller

Part Number:MAX3485CSA
US $1.50 - 1.90
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX3485CSA is a 3.3V, low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX3485CSA features slew-rate-limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. The MAX3485CSA transmits at up to 10Mbps. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit. The applications of the MAX3485CSA include: Low-Power RS-485/RS-422 Transceivers, Telecommunications, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.

Parametrics

MAX3485CSA absolute maximum ratings: (1)Supply Voltage (VCC):7V; (2)Control Input Voltage (RE, DE):-0.3V to 7V; (3)Driver Input Voltage (DI):-0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z):-7.5V to 12.5V; (5)Receiver Input Voltage (A, B):-7.5V to 12.5V; (6)Receiver Output Voltage (RO):-0.3V to (VCC + 0.3V); (7)Continuous Power Dissipation (TA = +70℃):471mW; (8)Operating Temperature Ranges:0℃ to +70℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX3485CSA features: (1)Operate from a Single 3.3V Supply-No Charge Pump; (2)Interoperable with +5V Logic; (3)8ns Max Skew; (4)2nA Low-Current Shutdown Mode; (5)-7V to +12V Common-Mode Input Voltage Range; (6)Allows up to 32 Transceivers on the Bus; (7)Full-Duplex and Half-Duplex Versions Available; (8)Industry Standard 75176 Pinout; (9)Current-Limiting and Thermal Shutdown for Driver Overload Protection.
