Product Summary

The MCF5307FT90B is an UART module. The MCF5307FT90B provides a compelling upgrade path for existing 68K or ColdFire designs. Combining a low-cost general purpose peripheral set with the Version 3 (V3) ColdFire core, this device achieves a 70 Dhrystone 2.1 MIPS performance level at 90 MHz. The capabilities of the single pipeline in the V3 microarchitecture deliver an attractive 1.3 MIPS/MHz without the additional cost of a second pipeline. This mid-range performance level, code compatibility and awardwinning integration comes at a very aggressive price level. The MCF5307FT90B combines better mathematical performance and basic DSP functions with a comprehensive peripheral set to provide a single-chip system, while decreasing overall time to market.

Parametrics

MCF5307FT90B absolute maximum ratings: (1)70 Dhrystone 2.1 MIPS at 90 MHz; (2)0 to 70℃ operating temperature; (3)Implemented in 0.35μm, TLM; (4)3.3-V supply/5.0-V tolerant I/O; (5)208-pin plastic QFP package; (6)Pin compatible with MCF5407 (note voltage and timing changes); (7)-40 to 85℃ operating temperature (66MHz); (8)Available at 66MHz and 90MHz.

Features

MCF5307FT90B features: (1)Version 3 ColdFire processor core with clock multiplied core, and branch cache acceleration logic; (2)Fully Code Compatible with Version 2 ColdFire processor Core; (3)8K Unified Cache; (4)4KByte SRAM; (5)Multiply and Accumulate Unit (MAC); (6)Industry leading debug module offering both background and real time capability; (7)Hardware integer divide unit; (8)Integrated Processor, DRAM Controller: (glueless interface to SDRAM, FPM and EDO); 2 UARTs; 4 fully programmable DMA Channels; 8 Chip Selects; 16-bit General Purpose I/O.

Diagrams

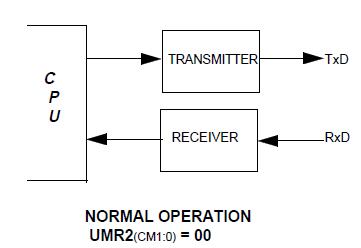

MCF5307FT90B block diagram
