Product Summary

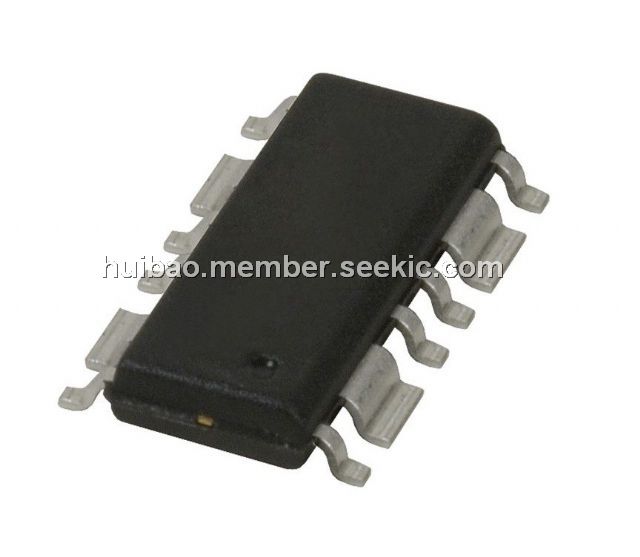

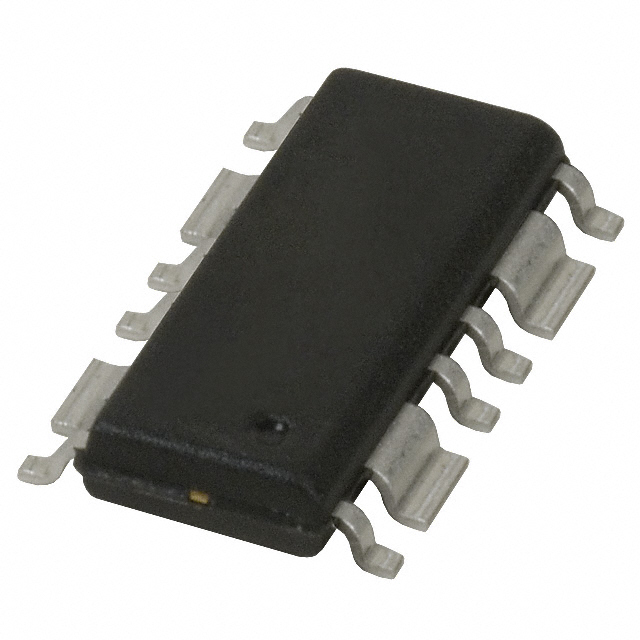

The RF2317TR7 is a general purpose, low-cost high-linearity RF amplifier IC. The RF2317TR7 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily cascadable 75Ω gain block. The applications of the RF2317TR7 are CATV Distribution Amplifiers, Cable Modems, Broadband Gain Blocks, Laser Diode Driver, Return Channel Amplifier, Base Stations.
Parametrics
RF2317TR7 absolute maximum ratings: (1)Device Current: 250 mA; (2)Input RF Power: +18 dBm; (3)Output Load VSWR: 20:1; (4)Ambient Operating Temperature: -40 to +85 ℃; (5)Storage Temperature: -40 to +150 ℃.
Features
RF2317TR7 features: (1)DC to 3.0GHz Operation; (2)Internally Matched Input and Output; (3)15dB Small Signal Gain; (4)4.9dB Noise Figure; (5)+47dBm Output IP3; (6)Single 9V to 12V Power Supply.

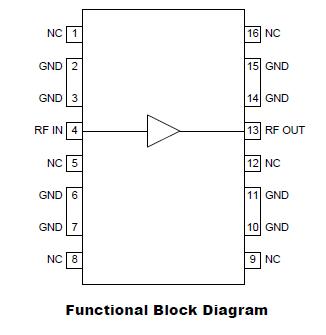

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RF2317TR7 |
|
IC AMP HBT GAAS CATV CJ2BAT0 |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
RF2301 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
RF2302 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
RF2304 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
RF2304TR7 |
|
IC AMP GEN-PURP LOW-NOISE 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
RF2306 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
RF2307 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
