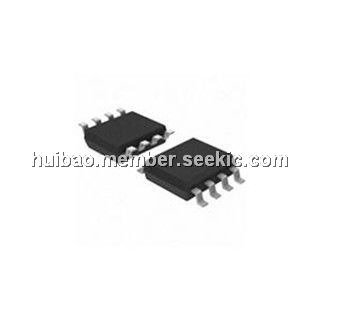

SN65HVD3082EDRG4

SN65HVD3082EDRG4, Low-power RS-485 Transceiver, SOIC-8, 7V, 24mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~0.35

PartNumber:: SN65HVD3082EDRG4

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-30

From Other Seller

Part Number:SN65HVD3082EDRG4
US $0.25 - 0.35
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN65HVD3082EDRG4 is a half-duplex transceiver designed for RS-485 data bus networks. Powered by a 5-V supply, the device is fully compliant with TIA/EIA-485A standard. With controlled transition times, these devices are suitable for transmitting data over long twisted-pair cables. The SN65HVD3082EDRG4 is optimized for signaling rates up to 200 kbps. The applications of the SN65HVD3082EDRG4 include Energy Meter Networks, Motor Control, Power Inverters, Industrial Automation, Building Automation Networks, Battery-Powered Applications, Telecommunications Equipment.

Parametrics

SN65HVD3082EDRG4 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Voltage range at A or B: -9 V to 14 V; (3)Voltage range at any logic pin: -0.3 V to VCC +0.3 V; (4)Receiver output current: -24 mA to 24 mA; (5)Voltage input range, transient pulse, A and B, through 100 ?(see Figure 13): -50 V to 50 V; (6)Junction temperature, TJ: 170℃; (7)Continuous total power dissipation: Refer to Package Dissipation Table.

Features

SN65HVD3082EDRG4 features: (1)Available in Small MSOP-8 Package; (2)Meets or Exceeds the Requirements of the TIA/EIA-485A Standard; (3)Low Quiescent Power, 0.3 mA Active Mode; 1 nA Shutdown Mode; (4)1/8 Unit Load—Up to 256 Nodes on a Bus; (5)Bus-Pin ESD Protection Up to 15 kV; (6)Industry-Standard SN75176 Footprint; (7)Failsafe Receiver (Bus Open, Bus Shorted, Bus Idle); (8)Glitch?Free Power-Up/Down Bus Inputs and Outputs.
