Product Summary

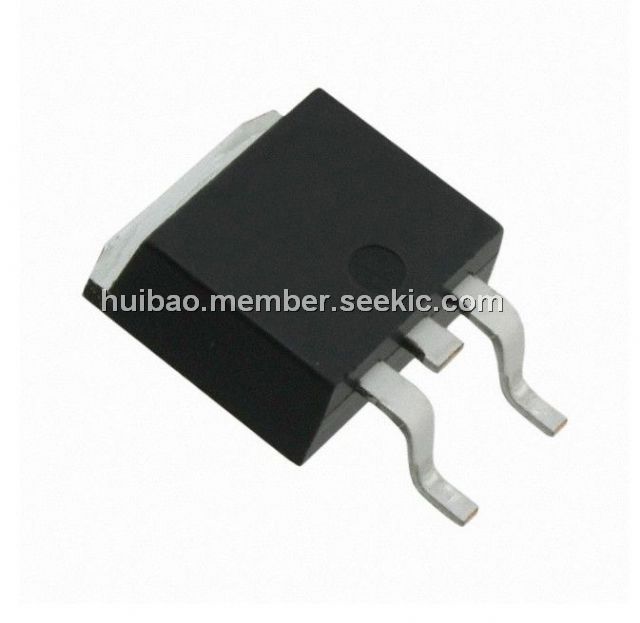

The STPS41H100CG is a low drop power schottky rectifier. It is suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged in D2PAK and TO-220AB, this STPS41H100CG is intended for use in high frequency inverters.

Parametrics

STPS41H100CG absolute maximum ratings: (1)Repetitive peak reverse voltage: 100 V; (2)RMS forward current: 30 A; (3)Average forward current: 20 A; (4)Surge non repetitive forward current: 220A; (5)Peak repetitive reverse current: 1A; (6)Storage temperature range: - 65 to + 175 ℃; (7)Maximum operating junction temperature: 175 ℃; (8)Critical rate of rise reverse voltage: 10000 V/ms.

Features

STPS41H100CG features: (1)Negligible switching losses; (2)Low leakage current; (3)Good trade off between leakage current and forward voltage drop; (4)Low thermal resistance.

Diagrams

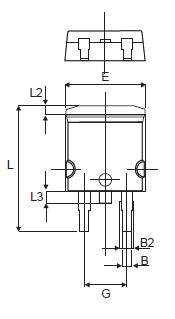

STPS41H100CG package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STPS41H100CG
STPS41H100CG
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X20 Amp 100 Volt
Data Sheet
0-1: $1.36
1-10: $1.23
10-100: $1.06
100-250: $1.00
STPS41H100CG-TR
STPS41H100CG-TR
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X20 Amp 100 Volt
Data Sheet
0-1: $1.70
1-10: $1.37
10-100: $1.23
100-250: $1.10
STPS41H100CGY-TR
STPS41H100CGY-TR

DIODE SCHOTTKY 100V 20A D2PAK
Data Sheet
0-1: $1.85
1-10: $1.66
10-25: $1.49
25-100: $1.35
100-250: $1.23
250-500: $1.10
