Product Summary

The TLV2370IDBVRG4 is a rail-to-rail input/output operational amplifier with shutdown. The TLV2370IDBVRG4 provides rail-to-rail input and output capability. The device takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The device also provides 3-MHz bandwidth from only 550 μA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8 V supplies down to ±1.35 V) a variety of rechargeable cells.

Parametrics

TLV2370IDBVRG4 absolute maximum ratings: (1)Supply voltage, VDD: 16.5 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI: 0.2 V to VDD + 0.2 V; (4)Input current range, II: ±10 mA; (5)Output current range, IO: ±100 mA; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range, TA: I-suffix: -40℃ to 125℃; (8)Maximum junction temperature, TJ: 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV2370IDBVRG4 features: (1)Rail-To-Rail Input/Output; (2)Wide Bandwidth: 3 MHz; (3)High Slew Rate: 2.4 V/μs; (4)Supply Voltage Range: 2.7 V to 16 V; (5)Supply Current: 550 μA/Channel; (6)Low Power Shutdown Mode IDD(SHDN): 25 μA/Channel; (7)Input Noise Voltage: 39 nV/√Hz; (8)Input Bias Current: 1 pA; (9)Specified Temperature Range -40℃ to 125℃ Industrial Grade; (10)Ultrasmall Packaging, 5 or 6 Pin SOT-23 (TLV2370/1).

Diagrams

TLV2370IDBVRG4 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

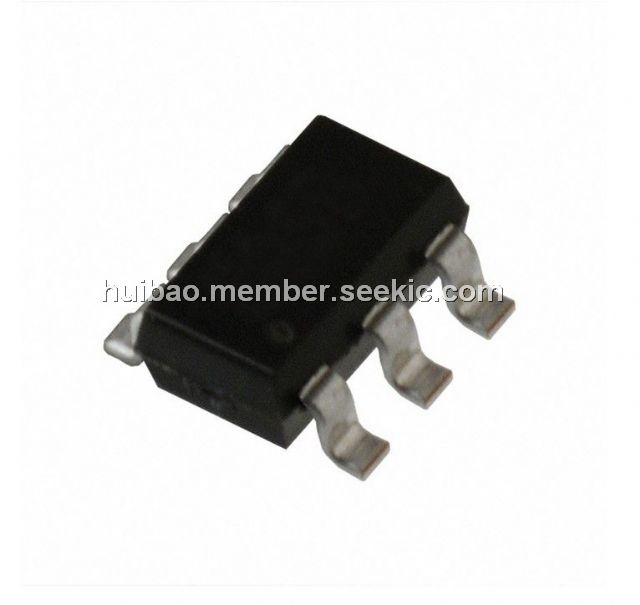

TLV2370IDBVRG4
TLV2370IDBVRG4

Texas Instruments

Operational Amplifiers - Op Amps 550-uA/Ch 3-MHz RRIO Op Amp w/Shutdown

Data Sheet

0-2070: $0.40
2070-3000: $0.37
3000-6000: $0.36
6000-12000: $0.35
