CC1010PAG

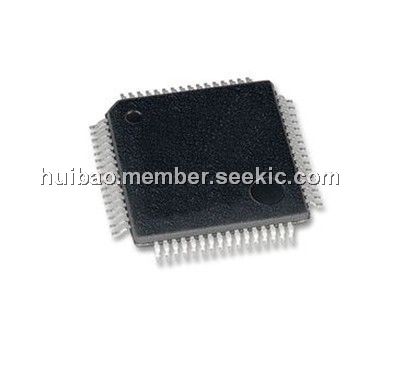

CC1010PAG, Single Chip Very Low Power RF Transceiver, TQFP-64, 5V, 14.8mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~11.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~11.50

PartNumber:: CC1010PAG

Brand:: Texas Instruments - TI | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-30

From Other Seller

Part Number:CC1010PAG
US $10.00 - 11.50
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

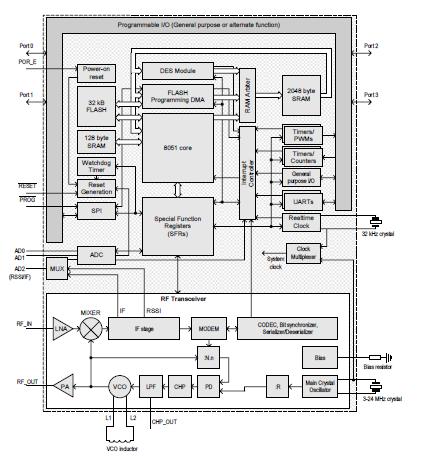

The CC1010PAG is a true single-chip UHF transceiver with an integrated high performance 8051 microcontroller with 32kB of Flash program memory. The RF transceiver can be programmed for operation in the 300 - 1000 MHz range, and is designed for very low power wireless applications. The CC1010PAG together with a few external passive components constitutes a powerful embedded system with wireless communication capabilities. The CC1010PAG is based on Chipcon SmartRF 02 technology in 0.35μm CMOS. The applications of the CC1010PAG include Very low power UHF wireless data transmitters and receivers, 315 / 433 / 868 and 915 MHz ISM/SRD band systems, Home automation and security, AMR-Automatic Meter Reading, RKE-Remote Keyless Entry with acknowledgement, Low power telemetry, Toys.

Parametrics

CC1010PAG absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V; (2)Voltage on any pin, -0.3 to VDD +0.3, max 5.0V; (3)Input RF level: 10 dBm; (4)Storage temperature range: -50 to 150℃; (5)Storage temperature range: -40 to 125℃; (6)Lead temperature: 260℃.

Features

CC1010PAG features: (1)300-1000 MHz RF Transceiver, Very low current consumption (9.1mA in RX); High sensitivity (typically -107 dBm); Programmable output power up to +10 dBm; Data rate up to 76.8 kbps; Very few external components; Fast PLL settling allowing frequency; hopping protocols; RSSI; EN 300 220 and FCC CFR47 part 15 compliant; (3)8051-Compatible Microcontroller, Typically 2.5 times the performance of a standard 8051; 32 kB Flash, 2048 + 128 Byte SRAM; 3 channel 10 bit ADC, 4 timers/2 PWMs, 2 UARTs, RTC, Watchdog, SPI, DES encryption, 26 general I/O pins; In-circuit interactive debugging is supported for the Keil μVision2 IDE through a simple serial interface; (3)2.7 - 3.6 V supply voltage; (4)64-lead TQFP.
