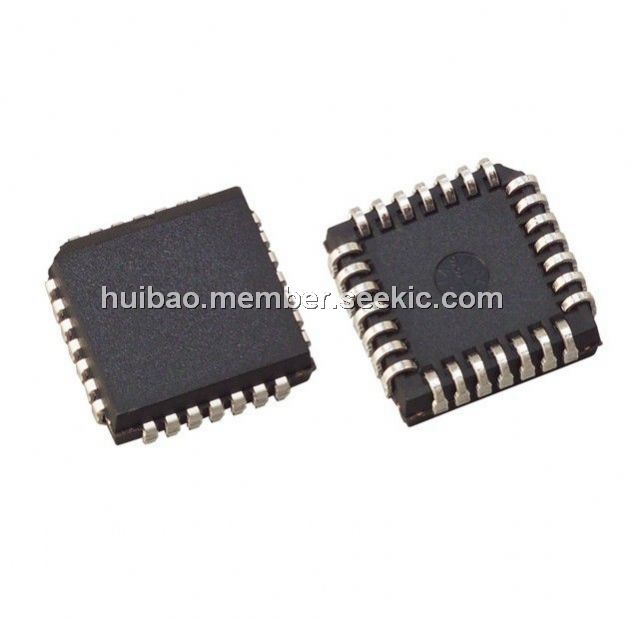

Product Summary

The HC55185AIM is a ringing subscriber line interface circuit. It supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. The HC55185AIM operates to 100V which translates directly to the amount of ringing voltage supplied to the end subscriber. The applications of the HC55185AIM are Voice Over Internet Protocol (VoIP), Cable Modems, Voice Over DSL (VoDSL), Short Loop Access Platforms, Remote Subscriber Units, Terminal Adapters.

Parametrics

HC55185AIM absolute maximum ratings: (1)Maximum Supply Voltages: VCC:-0.5V to +7V, VCC- VBH:110V; (2)Uncommitted Switch Voltage:-110V; (3)ESD (Human Body Model):500V.

Features

HC55185AIM features: (1)Onboard Ringing Generation; (2)Compatible with Existing HC5518x Devices; (3)Low Standby Power Consumption (75V, 65mW); (4)Reduced Idle Channel Noise; (5)Programmable Transient Current Limit; (6)Improved Off Hook Software Interface; (7)Integrated MTU DC Characteristics; (8)Low External Component Count; (9)Silent Polarity Reversal; (10)Pulse Metering and On Hook Transmission; (11)Tip Open Ground Start Operation; (12)Thermal Shutdown with Alarm Indicator; (13)28 Lead Surface Mount Packaging; (14)Dielectric Isolated (DI) High Voltage Design.

Diagrams

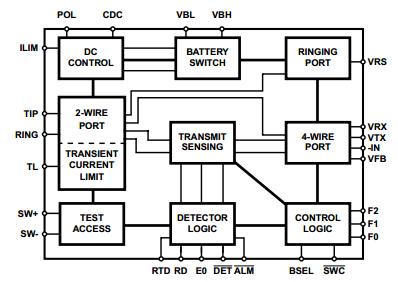

HC55185AIM block diagram
