Product Summary

The LT1399CGN#TRPBF is a Low Cost Dual and Triple 300MHz Current Feedback Amplifier with Shutdown. The LT1399CGN#TRPBF contains three independent 300MHz current feedback amplifiers, each with a shutdown pin. The LT1399CGN#TRPBF operates on all supplies from a single 4V to ±6V. The LT1399HV operates on all supplies from 4V to ±7.5V. The applications of the LT1399CGN#TRPBF include RGB Cable Drivers, LCD Drivers, Spread Spectrum Amplifiers, MUX Amplifiers, Composite Video Cable Drivers, Portable Equipment.

Parametrics

LT1399CGN#TRPBF absolute maximum ratings: (1)Total Supply Voltage (V + to V-): 12.6V; (2)Input Current: ±10mA; (3)Output Current: ±100mA; (4)Differential Input Voltage: ±5V; (5)Output Short-Circuit Duration: Continuous; (6)Operating Temperature Range: -40℃ to 85℃; (7)Specified Temperature Range: -40℃ to 85℃; (8)Storage Temperature Range: -65℃ to 150℃; (9)Junction Temperature: 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1399CGN#TRPBF features: (1)300MHz Bandwidth on ±5V (AV = 1, 2 and –1); (2)0.1dB Gain Flatness: 150MHz (AV = 1, 2 and –1); (3)Completely Off in Shutdown, 0mA Supply Current; (4)High Slew Rate: 800V/ms; (5)Wide Supply Range: ±2V(4V) to ±6V(12V) (LT1398/LT1399); ±2V (4V) to ±7.5V (15V) (LT1399HV); (6)80mA Output Current; (7)Low Supply Current: 4.6mA/Amplifier; (8)Fast Turn-On Time: 30ns; (9)Fast Turn-Off Time: 40ns; (10)16-Pin Narrow SO/Narrow SSOP Packages.

Diagrams

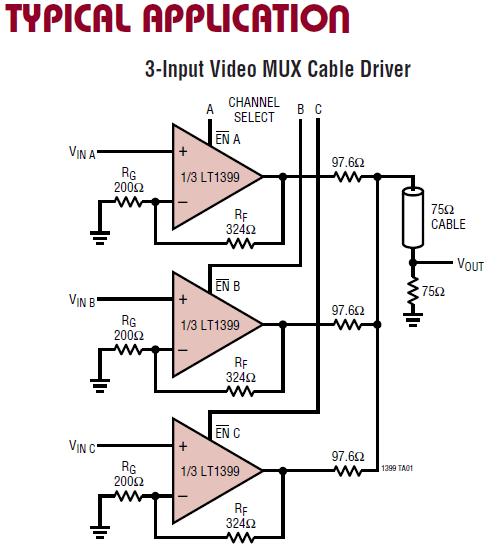

LT1073CS8-5#TRPBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1399CGN#TRPBF
LT1399CGN#TRPBF


IC CRRNT FEEDBK AMP TRPL 16-SSOP
