Product Summary

The LTC1966CMS8#TRPBF is a true RMS-to-DC converter that utilizes an innovative patented DS computational technique. The internal delta-sigma circuitry of the LTC1966 makes it simpler to use, more accurate, lower power and dramatically more flexible than conventional log-antilog RMS-to-DC converters. The LTC1966CMS8#TRPBF accepts single ended or differential input signals (for EMI/RFI rejection) and supports crest factors up to 4. The applications of the LTC1966CMS8#TRPBF include True RMS Digital Multimeters and Panel Meters, True RMS AC + DC Measurements.

Parametrics

LTC1966CMS8#TRPBF absolute maximum ratings: (1)Supply Voltage; (2)VDD to GND: -0.3 to 7V; (3)VDD to VSS: -0.3V to 12V; (4)VSS to GND: -7V to 0.3V; (5)Input Currents: ±10mA; (6)Output Current: ±10mA; (7)ENABLE Voltage: VSS -0.3V to VSS +12V; (8)OUT RTN Voltage: VSS -0.3V to VDD; (9)Operating Temperature Range: -40℃ to 85℃; (10)Specified Temperature Range: -40℃ to 85℃; (11)Maximum Junction Temperature: 150℃; (12)Storage Temperature Range: -65℃ to 150℃; (13)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1966CMS8#TRPBF features: (1)No-Hassle Simplicity: True RMS-DC Conversion with Only One External Capacitor Delta Sigma Conversion Technology; (2)High Accuracy: 0.1% Gain Accuracy from 50Hz to 1kHz; 0.25% Total Error from 50Hz to 1kHz; (3)High Linearity: 0.02% Linearity Allows Simple System Calibration; (4)Low Supply Current: 155mA Typ, 170mA Max; (5)Ultralow Shutdown Current: 0.1mA; (6)Constant Bandwidth: Independent of Input Voltage 800kHz –3dB, 6kHz ±1%; (7)Flexible Supplies: 2.7V to 5.5V Single Supply Up to ±5.5V Dual Supply; (8)Flexible Inputs: Differential or Single Ended Rail-to-Rail Common Mode Voltage Range Up to 1VPEAK Differential Voltage; (9)Flexible Output: Rail-to-Rail Output Separate Output Reference Pin Allows Level Shifting; (10)Small Size: Space Saving 8-Pin MSOP Package.

Diagrams

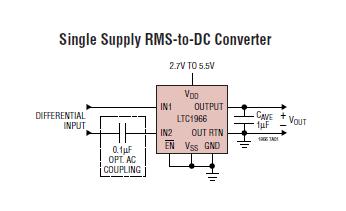

LTC1966CMS8#TRPBF block diagram
