Product Summary

The MAX4080TAUA+T is a high-side, current-sense amplifier with an input voltage range that extends from 4.5V to 76V making them ideal for telecom, automotive, backplane, and other systems where high-voltage current monitoring is critical. The MAX4080TAUA+T is designed for unidirectional current-sense applications. For maximum versatility, the 76V input voltage range applies independently to both supply voltage (VCC) and common-mode input voltage (VRS+). The applications of the MAX4080TAUA+T include Automotive (12V, 24V, or 42V Batteries), 48V Telecom and Backplane Current Measurement, Bidirectional Motor Control, Power-Management Systems, Avalanche Photodiode and PIN-Diode Current, Monitoring, General System/Board-Level Current Sensing, Precision High-Voltage Current Sources.

Parametrics

MAX4080TAUA+T absolute maximum ratings: (1)VCC to GND: -0.3V to +80V; (2)RS+, RS- to GND: -0.3V to +80V; (3)OUT to GND: -0.3V to the lesser of +18V or (VCC +0.3V); (4)Output Short Circuit to GND: Continuous; (5)Differential Input Voltage (VRS+ - VRS-): ±80V; (6)Current into Any Pin: ±20mA; (7)Continuous Power Dissipation (TA = +70℃), 8-Pin μMAX (derate 4.5mW/℃ above +70℃): 362mW; 8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (8)Operating Temperature Range: -40℃ to +125℃; (9)Junction Temperature: +150℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (soldering, 10s): +300℃; (12)Soldering Temperature (reflow): +260℃.

Features

MAX4080TAUA+T features: (1)Wide 4.5V to 76V Input Common-Mode Range; (2)Bidirectional or Unidirectional ISENSE; (3)Low-Cost, Compact, Current-Sense Solution; (4)Three Gain Versions Available: 20V; (5)±0.1% Full-Scale Accuracy; (6)Low 100μV Input Offset Voltage; (7)Independent Operating Supply Voltage; (8)75μA Supply Current; (9)Available in a Space-Saving, 8-Pin μMAX Package.

Diagrams

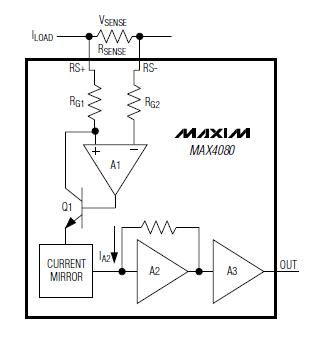

MAX4080TAUA+T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX4080TAUA+T
MAX4080TAUA+T

Maxim Integrated Products

Current Sense Amplifiers 76V High-Side Crnt Sense Amp w/V Out

Data Sheet

0-2070: $0.73
2070-2500: $0.73
