Product Summary
The OPA4131NA is a fet-input operational amplifier. Single, dual, and quad versions in industry-standard pinouts allow cost-effective design options. The OPA4131NA offers excellent general-purpose performance, including low offset voltage, drift, and good dynamic characteristics. Single, dual, and quad versions are available in DIP and SO packages. Performance grades of the OPA4131NA include commercial and industrial temperature ranges.
Parametrics
OPA4131NA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–) – 0.7V to (V+) + 0.7V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA4131NA features: (1)fet input: IB = 50pA max; (2)low offset voltage: 750μV max; (3)wide supply range: ±4.5V to ±18V; (4)slew rate: 10V/μs; (5)wide bandwidth: 4MHz; (6)excellent capacitive load drive; (7)single, dual, quad versions.

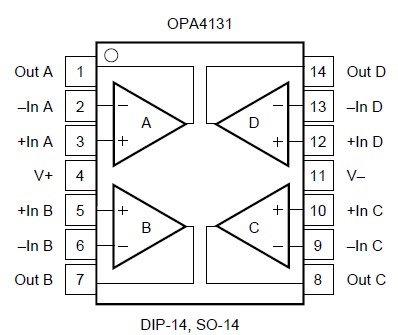

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA4131NA |
Texas Instruments |
Operational Amplifiers - Op Amps Gen Purp FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA4131NAG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Gen Purp FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||||||
