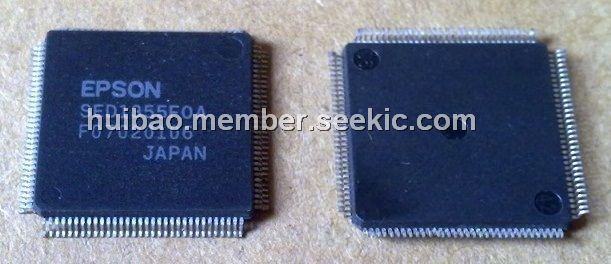

Product Summary
The SED1355F0A is a color/monochrome LCD/CRT graphics controller interfacing to a wide range of CPUs and display devices. The SED1355F0A architecture is designed to meet the low cost, low power requirements of the embedded markets, such as Mobile Communications, Hand-Held PCs, and Office Automation. The SED1355F0A supports multiple CPUs, all LCD panel types, CRT, and additionally provides a number of differentiating features.
Parametrics
SED1355F0A absolute maximum ratings: (1)VDD Supply Voltage: VSS - 0.3 to 6.0 V; (2)DAC VDD Supply Voltage: VSS - 0.3 to 6.0 V; (3)VIN Input Voltage: VSS - 0.3 to VDD + 0.5 V; (4)VOUT Output Voltage: VSS - 0.3 to VDD + 0.5 V; (5)TSTG Storage Temperature: -65 to 150℃; (6)TSOL Solder Temperature/Time: 260℃ for 10 sec. max at lead.
Features
SED1355F0A features: (1)1/2/4/8/16 bit-per-pixel (bpp) support on LCD/CRT; (2)Up to 16 shades of gray using FRM on monochrome passive LCD panels; (3)Up to 4096 colors on passive LCD panels; (4)Up to 64K colors on active matrix TFT/D-TFD LCD panels and CRT in 16 bpp modes; (5)Split Screen Display: allows two different images to be simultaneously viewed on the same display; (6)Virtual Display Support: displays images larger than the display size through the use of panning; (7)Double Buffering/multi-pages: provides smooth animation and instantaneous screen update; (8)Hardware Portrait Mode: direct hardware 90rotation of display image for portrait mode display; (9)Acceleration of screen updates by allocating full display memory bandwidth to CPU; (10)Hardware 64x64 pixel 2-bit cursor or full screen 2-bit ink layer.

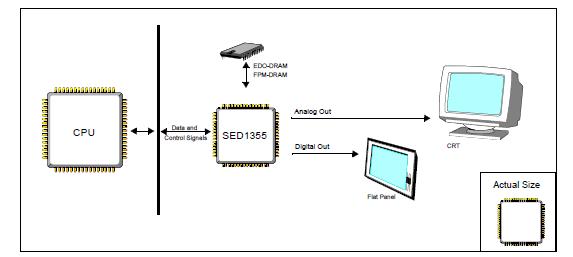

Diagrams
 |
