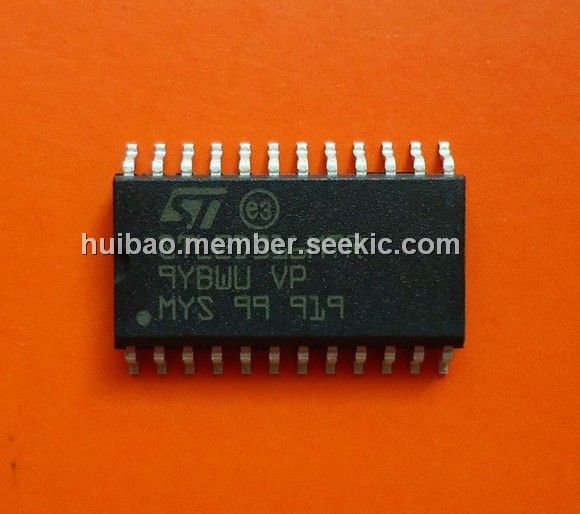

Product Summary

The STLED316MTR is a compact LED controller and driver that interface microprocessors to LED displays through serial 3-wire interface. It drives LED connected in common anode configuration. The STLED316MTR drives up to 48 discrete LEDs in 8 segment/6 digit configuration while functioning from a supply voltage of 5.0V. Additionally it can be used to drive 8 discrete LEDs which form a part of LED digit. The individual LEDs are wired as segments of a digit and brightness of these individual LEDs can be controlled digitally. The applications of the STLED316MTR include Set Top Boxes, White goods, Home appliances, DVD players, VCRs.

Parametrics

STLED316MTR absolute maximum ratings: (1)Operating temperature range: -65 to +150℃; (2)Supply current: 40mA; (3)Supply voltage: 5V.

Features

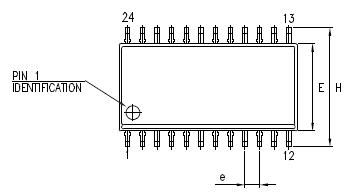

STLED316MTR features: (1)LED driver with 14 outputs (8 segments/6 digits); (2)40mA load current capability for each segment; (3)Outputs connect directly to the LEDs or can be open-drain; (4)Key-scanning (8x2 matrix); (5)Low power consumption in standby mode; (6)3-wire Serial Bus Interface (CLK, STB, DIN/DOUT); (7)8-step dimming circuit to control the overall display brightness; (8)Single external resistor for output current setting; (9)Inputs with Schmitt trigger give superior noise immunity; (10)A single LED digit output (DIG1_LED) can be used to drive up to 8 discrete LEDs; (11)8-step dimming circuit to control brightness of individual LEDs for LED digit; (12)5.0V (± 10%) for VCC; (13)Drives common-anode LED digits; (14)Built-in power on reset and soft-start circuits; (15)Available in SO24 package; (16)-40℃ to 85℃ operating temperature range.

Diagrams

STLED316MTR block diagram
