Product Summary

The TLV5616IDGKRG4 is a 12-bit voltage output digital-to-analog converter (DAC) with a flexible 4-wire serial interface. The 4-wire serial interface allows glueless interface to TMS320, SPI, QSPI, and Microwire serial ports. The TLV5616IDGKRG4 is programmed with a 16-bit serial string containing 4 control and 12 data bits. Developed for a wide range of supply voltages, the device can operate from 2.7 V to 5.5 V. The applications of the TLV5616IDGKRG4 include Digital Servo Control Loops, Digital Offset and Gain Adjustment, Industrial Process Control, Machine and Motion Control Devices, Mass Storage Devices.

Parametrics

TLV5616IDGKRG4 absolute maximum ratings: (1)Supply voltage (VDD to AGND): 7 V; (2)Reference input voltage range: -0.3 V to VDD +0.3 V; (3)Digital input voltage range: -0.3 V to VDD +0.3V; (4)Operating free-air temperature range, TA: -40℃ to 85℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV5616IDGKRG4 features: (1)12-Bit Voltage Output DAC; (2)Programmable Settling Time vs Power Consumption, 3μs in Fast Mode; 9μs in Slow Mode; (3)Ultra Low Power Consumption: 900μW Typ in Slow Mode at 3 V; 2.1 mW Typ in Fast Mode at 3 V; (4)Differential Nonlinearity: <0.5 LSB Typ; (5)Compatible With TMS320 and SPI Serial Ports; (6)Power-Down Mode (10 nA); (7)Buffered High-Impedance Reference Input; (8)Voltage Output Range, 2 Times the Reference Input Voltage ; (9)Monotonic Over Temperature; (10)Available in MSOP Package.

Diagrams

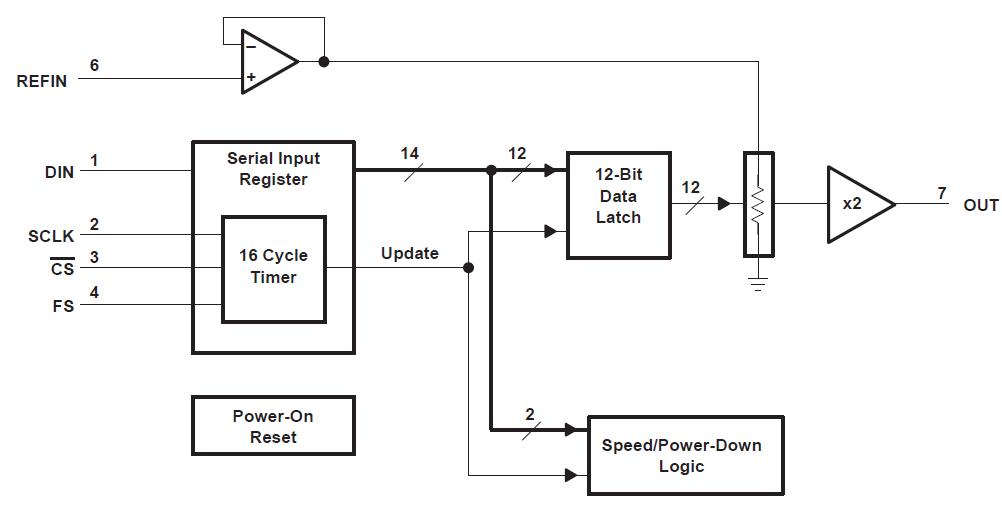

TLV5616IDGKRG4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

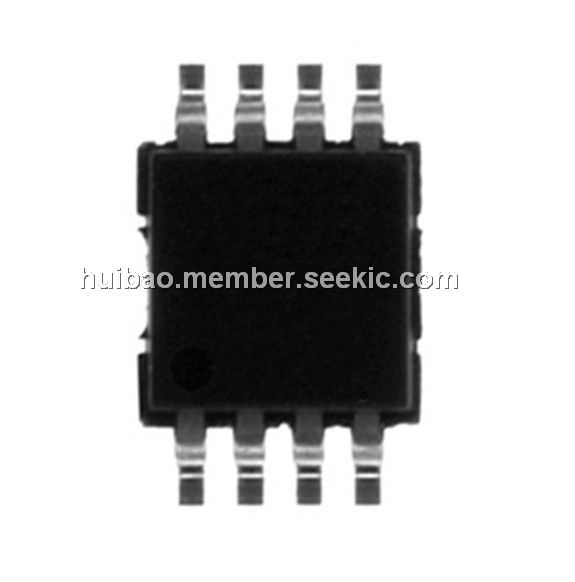

TLV5616IDGKRG4
TLV5616IDGKRG4

Texas Instruments

DAC (D/A Converters) 2.7-5.5 V Low Power 12-Bit

Data Sheet

0-1880: $2.66
1880-2000: $2.56
2000-2500: $2.56
