Product Summary
The TMP91FY42FG(JZ) is a high-speed 16-bit microcontroller designed for the control of various mid- to large-scale equipment.
Parametrics
TMP91FY42FG(JZ) absolute maximum ratings: (1)Power supply voltage: -0.5 to 4.0 V; (2)Input voltage: -0.5 to Vcc + 0.5 V; (3)Output current: 2 mA; (4)Output current: -2 mA; (5)Output current (total): 80 mA; (6)Output current (total): -80 mA; (7)Power dissipation (Ta = 85℃): 600 mW; (8)Soldering temperature (10 s): 260℃; (9)Storage temperature: -65 to 150℃; (10)Operating temperature: -40 to 85 ℃; (11)Number of Times Program Erase: 100 Cycle.
Features
TMP91FY42FG(JZ) features: (1)High-speed 16-bit CPU (900/L1 CPU); (2)Minimum instruction execution time: 148 ns (at 27 MHz); (3)Built-in RAM: 16 Kbytes, Built-in ROM: 256 Kbytes Flash memory; (4)External memory expansion; (5)8-bit timers: 8 channels; (6)16-bit timer/event counter: 2 channels; (7)General-purpose serial interface: 2 channel; (8)Serial bus interface: 1 channel.

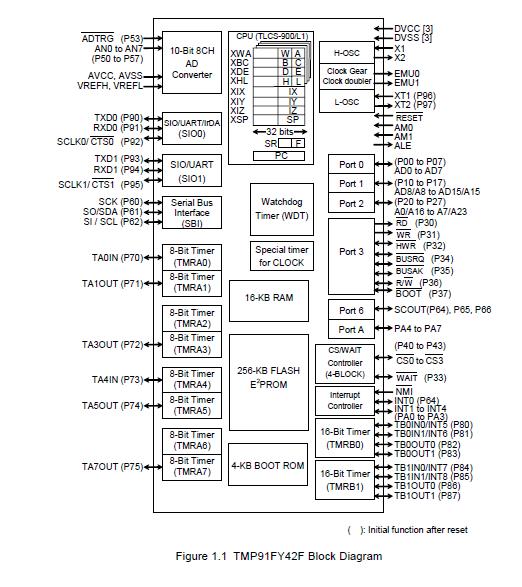

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

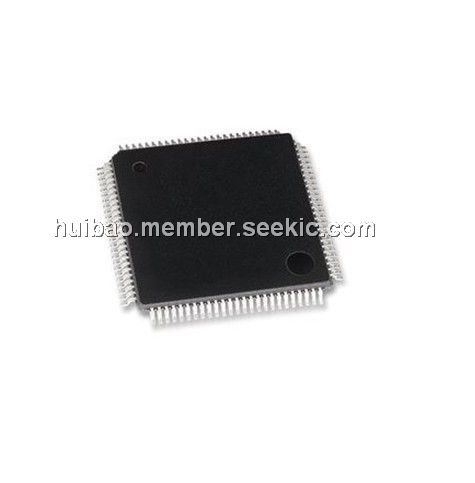

 TMP91FY42FG(JZ) |
Toshiba |
16-bit Microcontrollers (MCU) TLCS900/L1 256K Flash |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
TMP91FY42FG(JZ) |
Toshiba |
16-bit Microcontrollers (MCU) TLCS900/L1 256K Flash |
Data Sheet |
|
|
||||||||||||
 |
TMP91FW60FG(JZ) |
Toshiba |
16-bit Microcontrollers (MCU) TLCS900/L1 128K Flash |
Data Sheet |
|
|
||||||||||||
|
TMP91PW11FG |
Toshiba |
16-bit Microcontrollers (MCU) OTP MCU: TLCS-900/L1 |
Data Sheet |
|
|
||||||||||||
|
TMP92FD23AFG(JZ) |
Toshiba |
32-bit Microcontrollers (MCU) TLCS/900H1 512K Flash |
Data Sheet |
|
|
||||||||||||
|
TMP92CH21FG |
Toshiba |
32-bit Microcontrollers (MCU) TLCS900/H1 ROMLESS 16K RAM |
Data Sheet |
Negotiable |
|
||||||||||||
|
TMP92CM27 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
